Wall-mount, multi-bay

For desktop installation, see Installation.

This section describes how to wall-mount a multi-bay dock. If you don't need to wall-mount your dock, skip to Troubleshooting.

Note

The wall mount for the Body 4 multi-bay dock is the same as the mount used for the Body 3 multi-bay dock, legacy Body 2 multi-bay dock, and legacy Flex 2 multi-bay dock. If you already have this wall mount (SKU 70033), you can reuse it with the 8-bay Axon Body 3 or later dock by removing the core and legacy 6-bay dock modules and attaching the 8-bay Axon Body 3 or later dock.

Safety instructions

Before mounting your dock:

Ensure the area behind the wall where the dock will be located is clear of obstructions to avoid damage to surroundings, pipes, or existing wiring.
Ensure your cables meet all applicable building and fire codes. For in-wall installation, most require UL-rated wire labeled CL2 or CL3.
Leave adequate space around all sides of the dock for proper ventilation and maneuvering around it without people or items bumping it.

Tools and materials

Cable-wire tester/locator
Level
Pencil
Drill and bits
Screwdriver
Stud finder
Tape measure
Wall-mount kit

Dimensions

The dimensions below show the mounting hole locations of the wall mount bracket and the overall size of the assembly with the dock attached. Place the power supply behind the unit on the horizontal shelf.

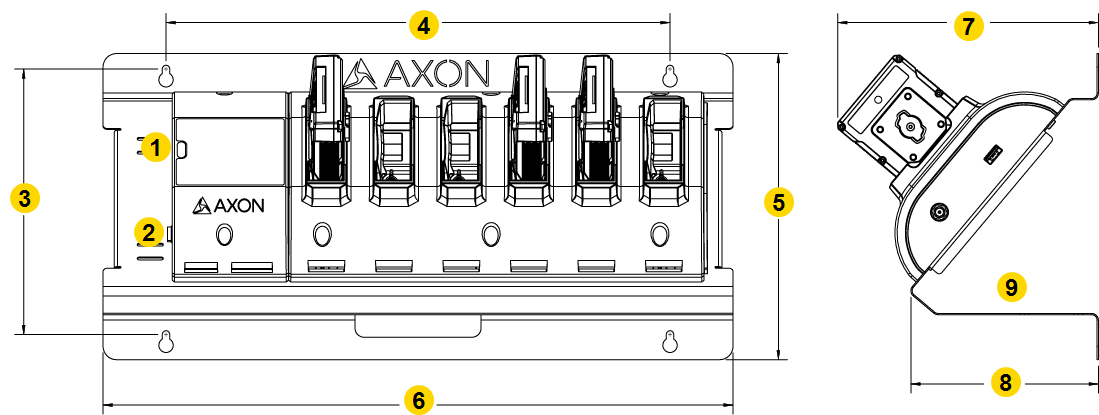

Dimensions for body cameras and Flex systems 6-bay dock

7.375" (18.7 cm) center-to-center
14.0" (35.6 cm) center-to-center
8.51" (21.6 cm)
17.5" (44.5 cm)

7.55" 19.2 cm)
5.21" (13.2 cm)
Place power supply here

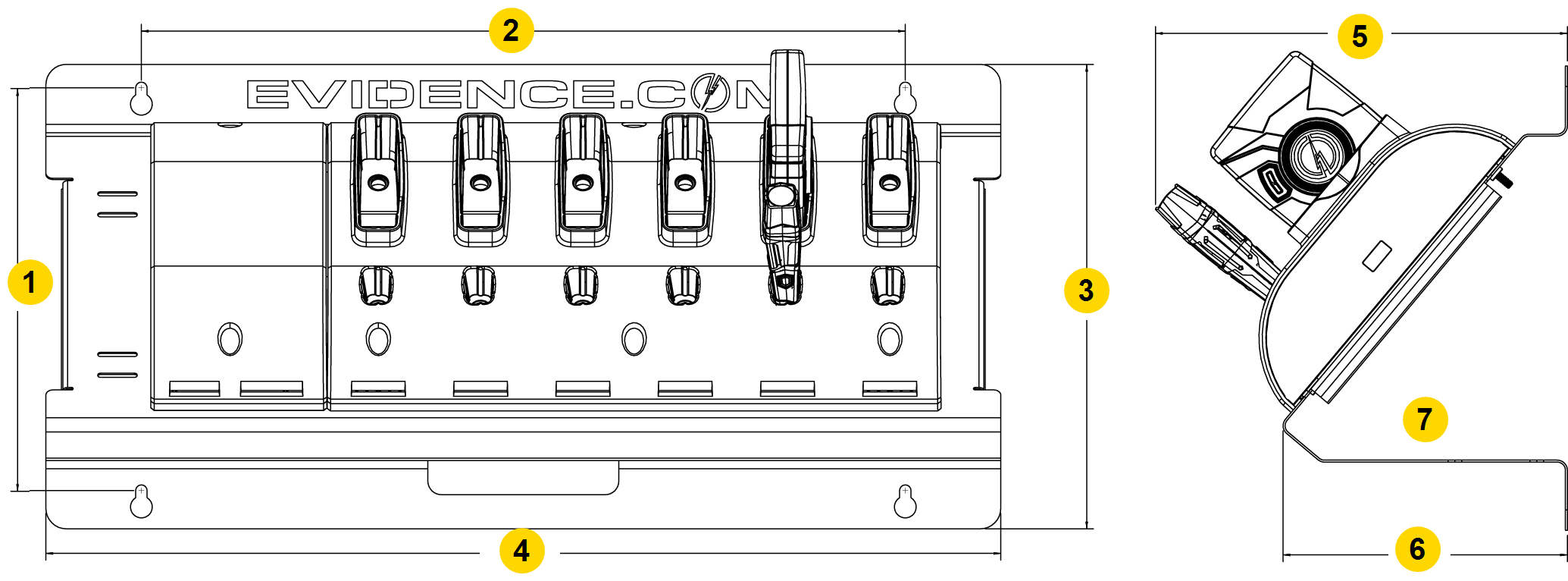

Dimensions for Body 2 and Fleet camera 6-bay dock

Ethernet port
Power port
7.375" (18.7 cm) center-to-center
14.0" (35.6 cm) center-to-center

8.51" (21.6 cm)
17.5" (44.5 cm)
7.24" (18.4 cm)
5.21" (13.2 cm)
Place power supply here

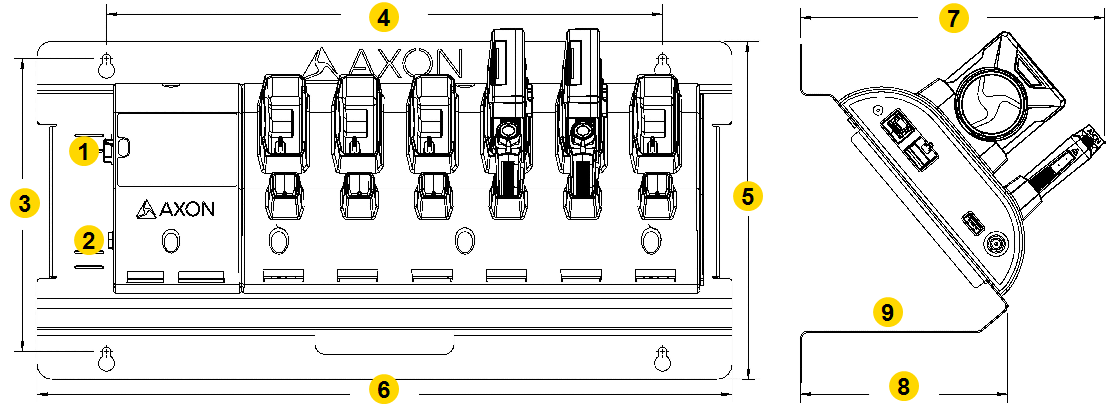

Dimensions for Axon Flex 2 System 6-bay dock

Ethernet port
Power port
7.375" (18.7 cm) center-to-center
14.0" (35.6 cm) center-to-center

8.51" (21.6 cm)
17.5" (44.5 cm)
7.66" 19.5 cm)
5.21" (13.2 cm)
Place power supply here

Use the overall size of the wall mount bracket to determine the spacing and fit between multiple assemblies.

Step 1 – Preparation

Ensure you have all necessary hardware and cables required to complete the installation.
Read all installation instructions for both the dock and the wall mount bracket.
Decide if you will leave the cables showing or hide them in the wall behind your dock.

Step 2 – Attach the dock to the wall mount bracket

Align the holes of the dock with the holes on the wall mount bracket.
Use the screws provided in the dock wall mount kit to attach the dock to the bracket.
As the screws come out the back of the bracket, attach the washers and add the wing nuts.
Tighten all screws.

Step 3 – Identify dock placement

Find a location away from heat sources and direct sunlight that does not obstruct movement.
Choose a location close to an electrical outlet and a network outlet. Measure the length of the dock’s power cord to ensure it will reach.

Step 4 – Attach the wall mount bracket to the wall (stud mount)

Your wall mount kit comes with hardware for mounting the bracket to a stud or mounting directly into drywall (if mounting to drywall, skip to Step 5). Use the longer screw for mounting the bracket into a stud.

Using a stud finder, mark the location of each stud’s center with a pencil.
Use a nail to confirm stud location. Depending on the wall construction, you may not be able to mount both ends of the wall mount bracket into a stud. If needed, use the drywall anchors for the other mounting locations.
Position the wall mount bracket on the wall and align the mounting keyhole in the left side of the bracket with the center line of the stud.
Use a level to ensure the bracket is level before marking the holes.
Mark the center of the left side keyholes in the center of each wall stud.
Drill a pilot hole smaller than the screw diameter.
Install the screws into the stud until there is 1/8” (3.2 mm) of space between the bottom of the screw head and the wall. This will allow the bracket to be placed onto the screws and settle in the keyhole (the holes in the bracket are shaped like keyholes to make it easier to adjust the mount’s position on the wall).
Repeat steps 4–7 for the other side of the mount bracket.
After the wall mount bracket is positioned correctly, tighten all of the screws.

Skip to Step 6.

Step 5 – Attach the wall-mount bracket to the wall (drywall mount)

If installing the bracket to a wall stud, go to Step 4 above. Use the screw-in anchors and shorter screws for drywall installations.

Locate the wall mount bracket on the wall.
Using a level to ensure the bracket is level, mark the center of the four keyholes.
Remove the wall mount bracket and install the drywall anchors.
Leave 1/8” (3.2 mm) of space between the bottom of the screw head and the wall to allow the bracket to settle in the keyhole.

Step 6 – Connect the cables

There is space provided on the horizontal shelf to secure the power supply for the dock.

Position the power supply between the slots in the bracket and secure the power supply to the bracket with the Velcro strap.
Route the barrel connector around the edge guard and plug the barrel connector into the power jack on the dock.
Secure the cable in position with the attached zip tie and the associated slots in the bracket.
Plug the power supply cable into a power strip or nearby AC outlet.
Plug the CAT 5e (or better) cable from your agency’s network data jack into the WAN port on the dock. Secure the cable in position with the attached zip tie and the associated slots in the bracket.

The power LED on top will illuminate green when the dock is powered.
