Get to know Axon Outpost
Axon Outpost provides continuous, unattended operation in outdoor environments. It includes a weather-resistant enclosure, onboard processing hardware, an integrated LTE modem, and a multi-purpose LED ring to communicate status and visibility. Axon Outpost turns on automatically when it receives power, establishes network connectivity, and begins performing automated functions without requiring physical interaction.
The enclosure protects internal components from dust, moisture, and environmental exposure. It allows reliable performance across a wide range of temperatures and lighting conditions while providing clear visual indication of operational state through its LED ring.
Components
Enclosure
The camera enclosure contains the optics, processor, LTE communication hardware, and internal battery. The housing is designed for long-term outdoor exposure and meets IP66 weather resistance requirements (dust-tight, protected against high-pressure water jets).

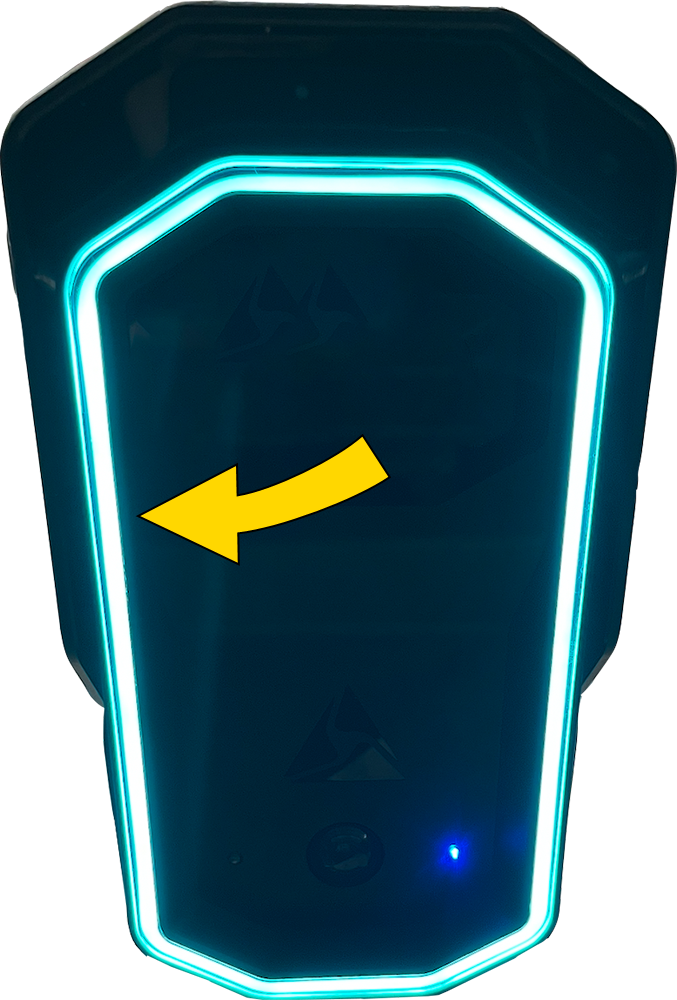

LED ring
The LED ring is the visual interface for Axon Outpost. It provides:
- Status feedback for 10 seconds when the Axon Outpost button is pressed
- Diagnostic feedback during power-up, setup, registration, and fault states
- Optional public-facing visibility if enabled in Axon Evidence
View color meanings and diagnostic patterns in LED ring behavior.

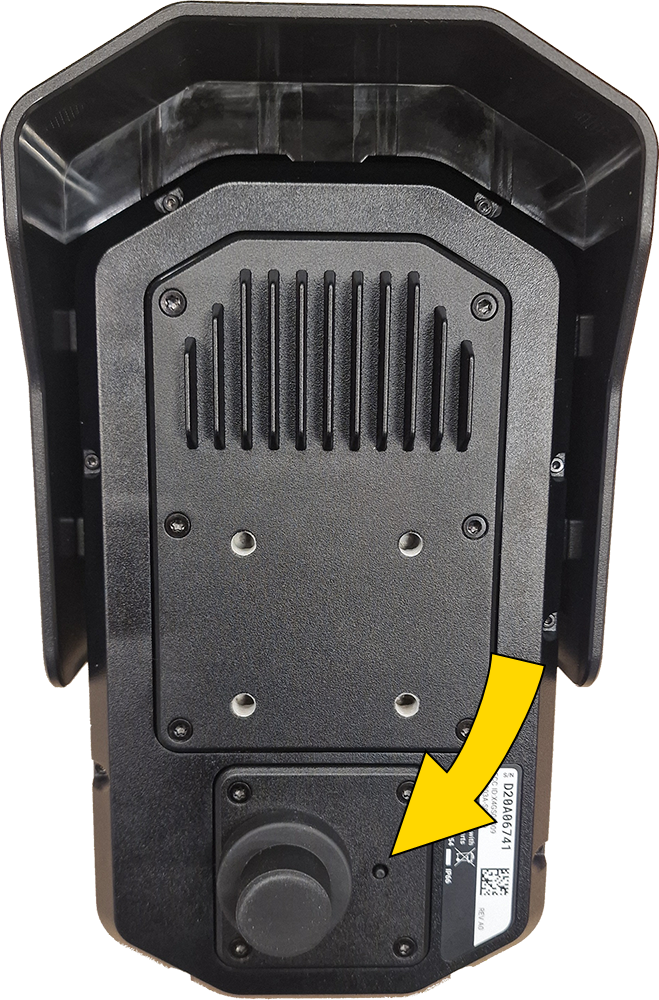

Axon Outpost button
The small button on the back of Axon Outpost lets users view system status and initiate basic functions such as pairing mode or reset. It is resistant to accidental activation. The button supports multiple press durations, each triggering a specific function. View a full table of button press actions in Button behavior.
Power connector
The power connector accepts 12–24 VDC input directly from an approved power source, which can be:
- Direct 12–24 VDC
- 110 VAC using the Axon Outpost external AC power supply
- Solar power using the Axon Outpost solar panel
All installation and wiring steps for these power options are documented in the installation guide.
Communication module
Axon Outpost includes an integrated LTE modem compatible with multiple network bands and supports both high-power and sleep states for efficient connectivity management. The communication module lets Axon Outpost upload detections, livestream, and communicate with Axon Evidence and Axon Fusus continuously whenever power is available. Network behavior and connectivity modes are automatic and do not require user action.
Environmental design
Weather resistance
Axon Outpost is rated IP66, protecting the device against dust ingress and powerful water spray, enabling reliable outdoor operation in varied environmental conditions. It also meets ASTM B117 salt fog tolerance for deployments in coastal or high-salinity environments .
Operating temperature
Axon Outpost is designed for continuous operation from -22–140 °F (-30–60 °C).
The system supports operation in up to 80% humidity in temperatures above 68 °F (20 °C).
These ratings ensure stable performance across a wide range of climates, including extreme cold and high-heat environments.
Low-light operation
When powered through the standard Axon Outpost solar configuration, Axon Outpost can operate for up to three days without sunlight in normal usage patterns.
Storage conditions
Store Axon Outpost in a dry environment at 30–70 °C. Allow it to reach ambient temperature before returning the device to service to ensure normal operation.
Installation orientation considerations
Axon Outpost supports both fixed-position and mobile deployments. The device automatically adjusts certain behaviors based on its configuration settings. Mounting and alignment requirements for supported deployment types are in the installation guide.
System overview
Autonomous operation
Once external power is applied via the DC power connector or the USB-C port, an Axon Outpost that has already been set up will automatically:
- Power on and start running
- Establish and manage LTE connectivity
- Begin continuous LPR processing
- Become available for livestream sessions
This occurs without requiring any manual steps from the user.
Secure communication
All detection metadata, livestream video, and device health information are transmitted using encrypted communication protocols over LTE.
Remote management
Users can verify camera operational status, and connectivity, configuration, LED behavior settings, firmware updates, and health monitoring remotely through Axon Evidence. No on-device controls are required during normal operation.
