Technical specifications
The Handgun VR Controller (VR19H) is a virtual reality controller and can only be used with virtual reality applications. No components can be used as a weapon or converted into a weapon. Buttons are used for powering on and off, communicating trigger action, and short-range wireless pairing to a compatible virtual reality headset.
Physical specs
| Parameter | Result |
|---|---|
| Length |
|
| Height |
|
| Width |
|
| Weight | 1.43 lb (650 g) |
| Trigger type | Electric hall sensor (binary non-adjustable) |
| Construction | White polymer |
| LEDs |
Pairing LED – Single LED behind the front sight for pairing status indications Status LED – Single LED at the front left to indicate battery status and trigger actions Tracking LED – Eight Infrared LEDs on the controller allow the separate headset's camera to track the location of the controller within 3D space |
| Comms | 2.4 GHz proprietary Bluetooth channel |
| Power type | Integrated single cell lithium battery pack |
| Battery voltage | 3.7 V nominal |
| Operating range | 32–104 ⁰F (0–40 ⁰C) |
| Battery charging method | USB-C on front of the handle, max 200 mA |
Actual measurements on products may vary due to items outside Axon's control. Product specifications may change without notice. The actual product may vary from picture, image, or graphic. Refer to current Axon published product specifications for specified limits and test conditions. Read the manual and all product literature.
For more information, see current Handgun VR Controller (VR19H) device/product specification sheets, training materials, product manuals, and website at www.axon.com. Axon Enterprise, Inc. reserves the right to change or modify this document without notice.
Bluetooth Low Energy (BLE) specs
| Parameter | Result |
|---|---|
| Frequency range | 2402–2480 MHz |
| Modulation type | GFSK |
| Channel BW | 2 MHz |
| Data rate | 1 Mbps |
| Maximum Average Conducted Power (FCC/ISED) | 7 dBm |
| Maximum Average Conducted Power (EU) | 3.5 dBm |
Distance to body (in mm)
In use, finger on trigger |

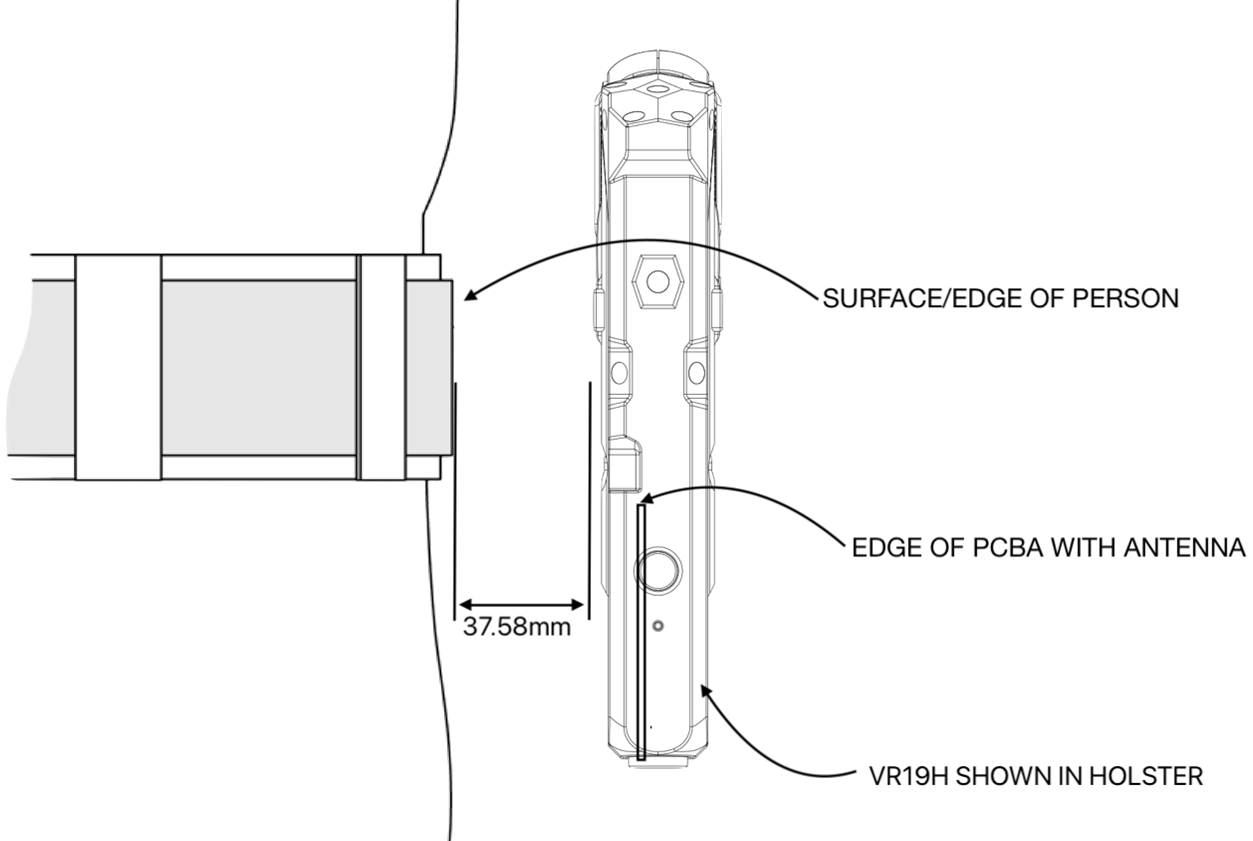

Not in use, holstered |
In use, finger resting against side |
|
