Technical specifications
The VR Controller can only be used with virtual reality applications. No components can be used as a weapon or converted into a weapon. Buttons are used for powering on and off, communicating trigger action, and short-range wireless pairing to a compatible virtual reality headset.
Physical specifications
| Parameter | Result |
|---|---|

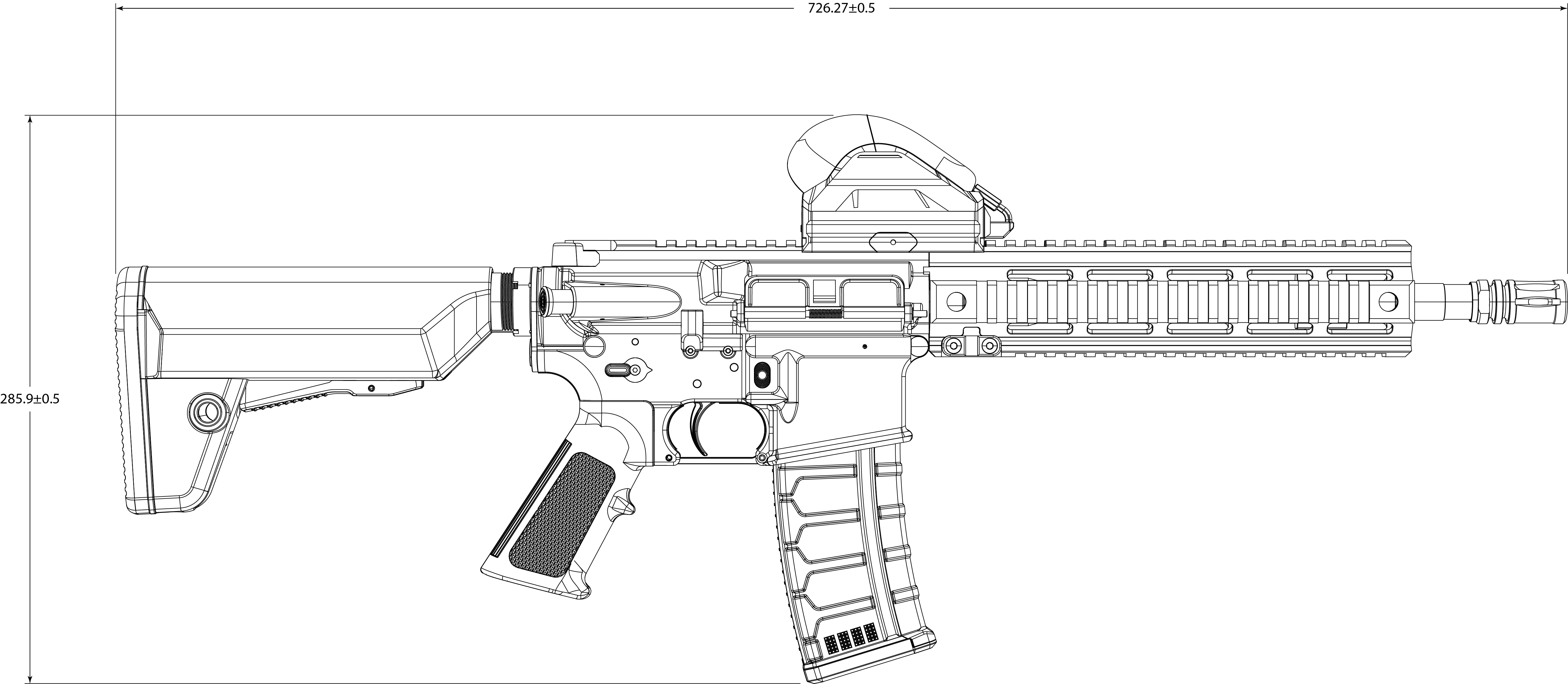

| Depth | 28.59 in. (726.27 mm) |

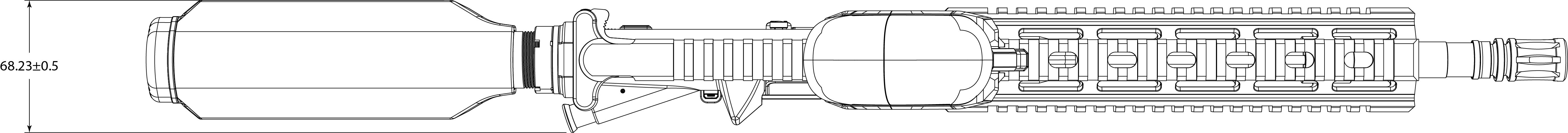

| Width | 2.68 in. (68.11 mm) |
| Height | 11.22 in. (285.04 mm) |
| Weight |
With magazine: 7.282 lbs (3303 g) Without magazine: 6.853 lbs (3108 g) |
| Trigger type | Mechanical trigger (binary non-adjustable) |
| Safety type | Mechanical lever (binary non-adjustable) |
| Construction | White polymer, metal |
| LEDs |
Pairing LED: Single LED behind the front sight for pairing status indications Status LED: Single LED at the front left near the Reset button for battery status and trigger actions Tracking LED: Eight Infrared LEDs on the controller allow the separate headset's camera to track the location of the controller within 3D space |
| Comms | 2.4 GHz proprietary Bluetooth channel |
| Power type |
HTC tracker: Integrated single cell lithium battery pack Magazine: Two removable single cell lithium batteries VR rifle body: Removable 3-cell lithium battery |
| Battery voltage |
3.7 V nominal per cell |
| Operating range |
32–104 ⁰F (0–40 ⁰C) Humidity: 70% |
| Battery charging method | USB-C on buttstock, max 800 mA |
Actual measurements on products may vary due to items outside Axon's control. Product specifications may change without notice. The actual product may vary from picture, image, or graphic. Refer to current Axon published product specifications for specified limits and test conditions. Read the manual and all product literature.
For more information, see current Rifle VR Controller (VRM4R) device/product training materials, product manuals, and website at www.axon.com. Axon Enterprise, Inc. reserves the right to change or modify this document without notice.
Bluetooth Low Energy (BLE) specs
| Parameter | Result |
|---|---|
| Frequency range | 2402-2480 MHz |
| Modulation type | GFSK |
| Channel BW | 2 MHz |
| Data rate | 1 Mbps |
| Maximum average conducted power (FCC/ISED) | 7 dBm |
| Maximum average conducted power (EU) | 3.5 dBm |
Distance to body (in mm)
In use, finger on trigger
|
|
In use, finger resting against side |
