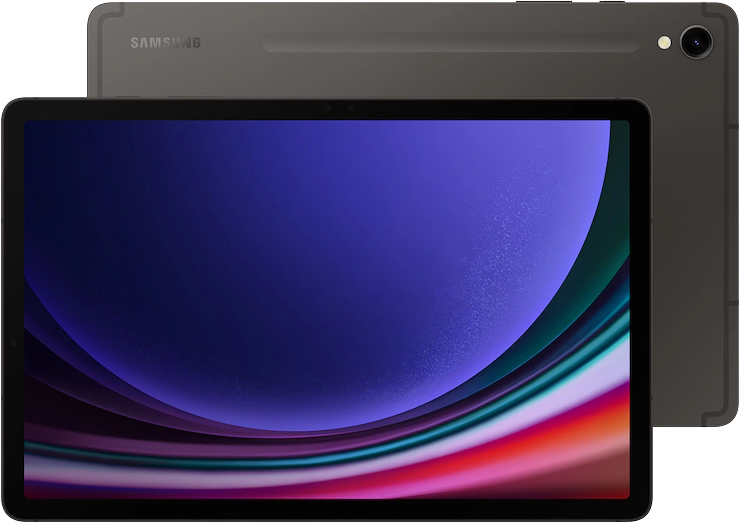

Overview of Galaxy S7+/S9 tablet

Tablet functionality

There are two main buttons on the tablet:

• Power: The smaller of the two buttons along the top left corner
• Volume: The larger toggle button next to Power

To turn the tablet on, hold Power for about five seconds.

To wake the tablet from sleep, press Power or double-tap the screen.

Press the left or right Volume toggles to increase or decrease the tablet playback volume, respectively.

To turn the tablet off, perform one of these actions:

• Hold Power and Volume down at the same time.
• Swipe down from the top of the tablet screen twice, tap Power, tap Power off, then tap it again.

To interact with the screen, use your finger or a stylus pen.

For additional features and functionality associated with this tablet, refer to the Samsung user guide.

Connect to Wi-Fi

1. Once the tablet is fully charged, swipe down from the top of the tablet screen.
2. Press and hold the Wi-Fi icon to open Settings from the drop-down menu.
3. Ensure Wi-Fi is toggled on. This will allow the tablet to search for a Wi-Fi network.
4. Below the Wi-Fi slider is a list of available networks the tablet can connect to. Select the applicable network and enter the password when prompted.
5. Ensure Auto-Reconnect is toggled on. This will allow the tablet to automatically reconnect to the selected network every time the tablet turns on.
6. Select Connect.
7. Once the Wi-Fi network has connected, select Back < at the bottom of the screen, or proceed to the next section for additional setting options.

Optional settings

Change screen timeout

By default, the tablet screen will time out after 30 seconds of inactivity. You can increase the timeout timer so the screen will stay on longer. To do this:

1. Select the Display menu on the left of the Settings page.
2. Select Screen timeout.
3. Choose the desired screen timeout length up to 10 minutes.
4. Select Back < to return to the Display menu.
5. Select Back < to exit.

Change screen auto rotation

By default, the tablet screen will automatically rotate between portrait and landscape mode based on the orientation of the tablet. You can turn this feature off. To do this:

1. Swipe down from the top of the tablet screen.
2. Deselect Auto-rotate.
3. Select Back < to exit.

Use a tablet as a second screen

The tablet's Second screen function allows users to concurrently view in-headset content.

To screen cast to a tablet or other media device:

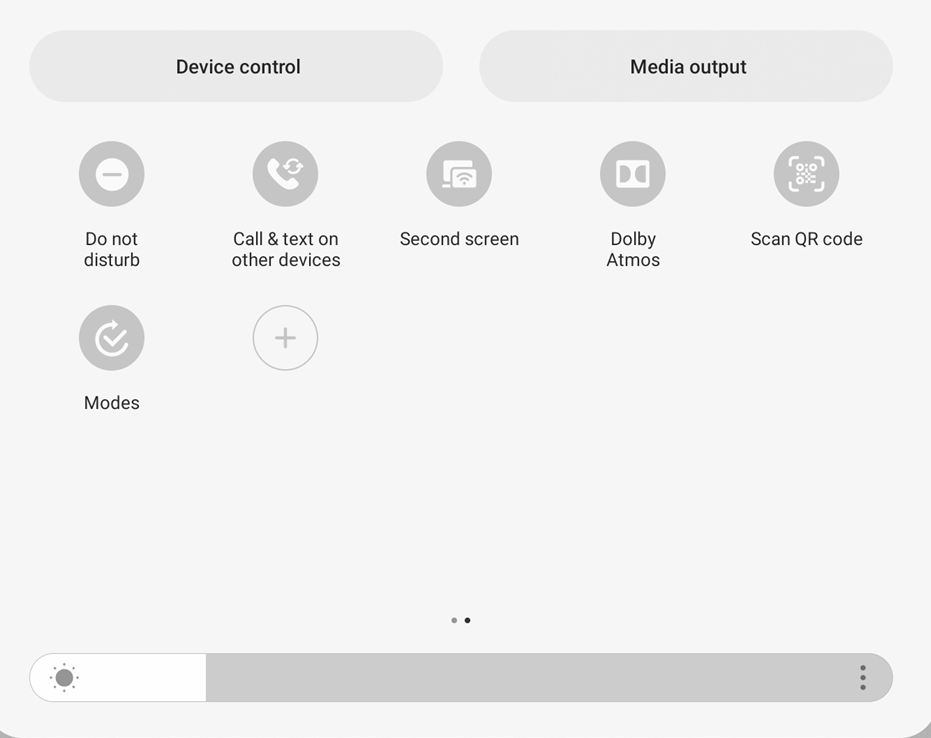

1. Swipe down from the top of the tablet screen twice to expand the Device Control/Media Output menus.
2. Swipe left once to scroll to the second page.

3. Select Second screen.

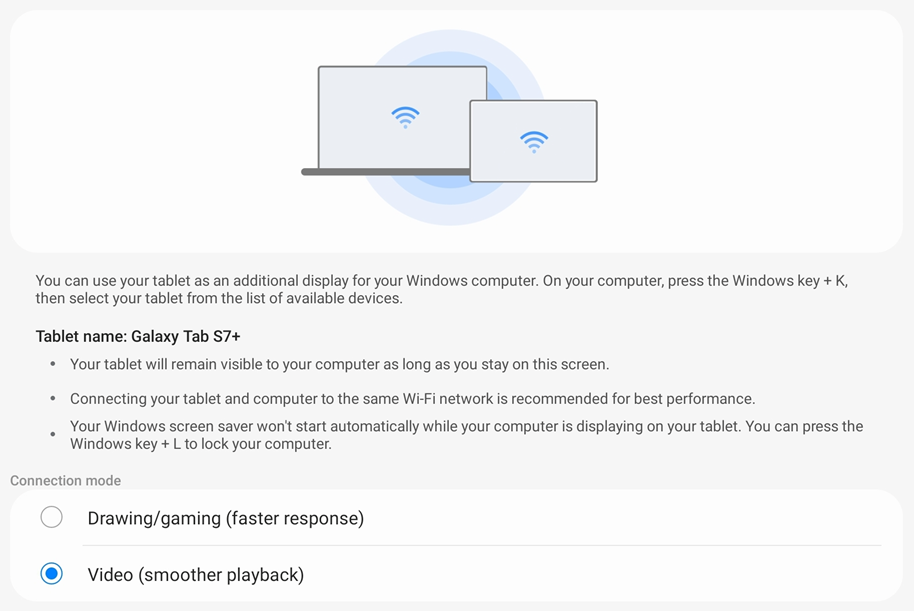

4. Select Video (smoother playback).

5. When the tablet pairing screen is active, access the headset sub-menu by one of the three options discussed above.
6. Select Cast.
7. Select the media to cast to.

Launch Simulator Training

To launch Simulator Training on the tablet, open the Simulator Training app. Then follow the prompts to sign in.

Launch Legacy Simulator Training

Before launching Legacy Simulator Training, ensure the application and headset version match. To check the installed version, hold the Focus 3 Simulator Training icon to launch the Settings/App Info screens. The version number displays at the bottom of the App Info page. You may need to scroll down to see it.

To launch the Focus 3 Simulator Training application:

1. Tap the Focus 3 Simulator Training icon to launch the application.
2. On first launch, a notification of button functionality displays. Swipe up from the bottom of the screen and select OK.
3. For the option for audio and video recording, select Allow for this application only.
4. When prompted for access to device media, select Allow.
Note

Selecting any other recording or access options will cause the application to fail. If this happens, restart the application.

5. The Simulator Training application loads.
