Devices tab

Dashboard Devices tab - Fleet on PC

Dashboard Devices tab - Fleet on Android

Dashboard Devices tab - Fleet on iOS

Dashboard Devices tab - Fleet on Samsung

Dashboard Devices tab - Fleet on DeX

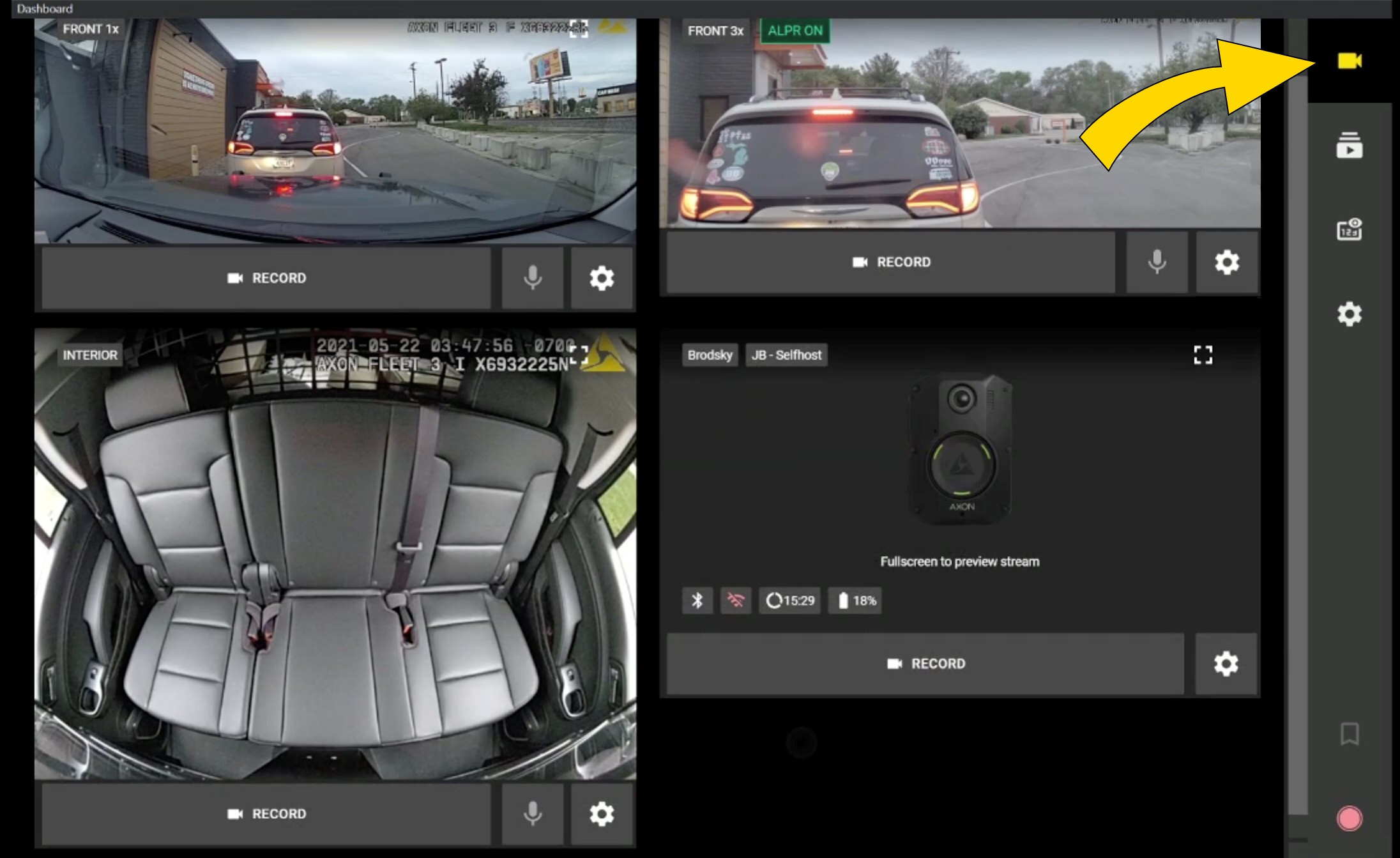

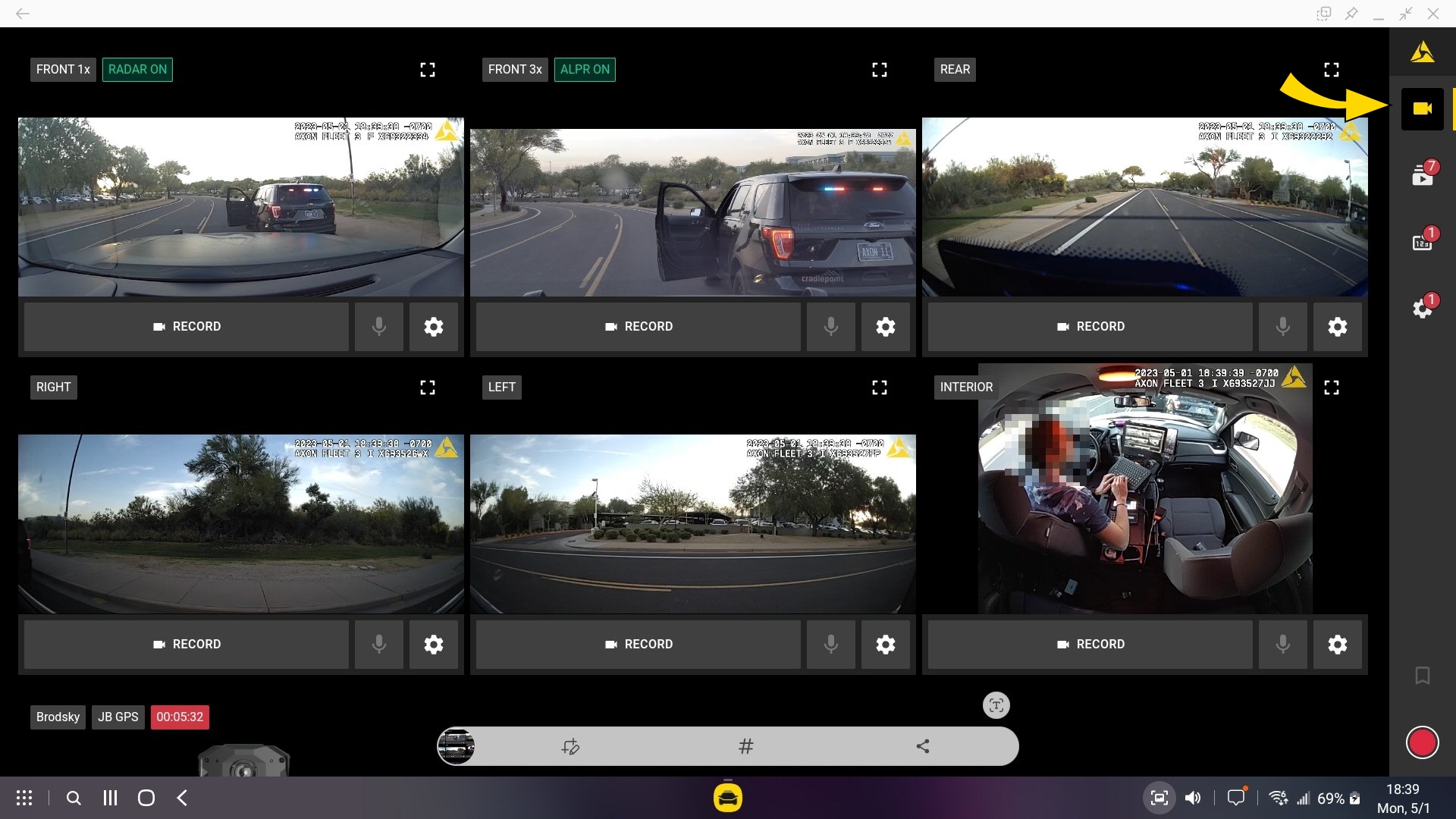

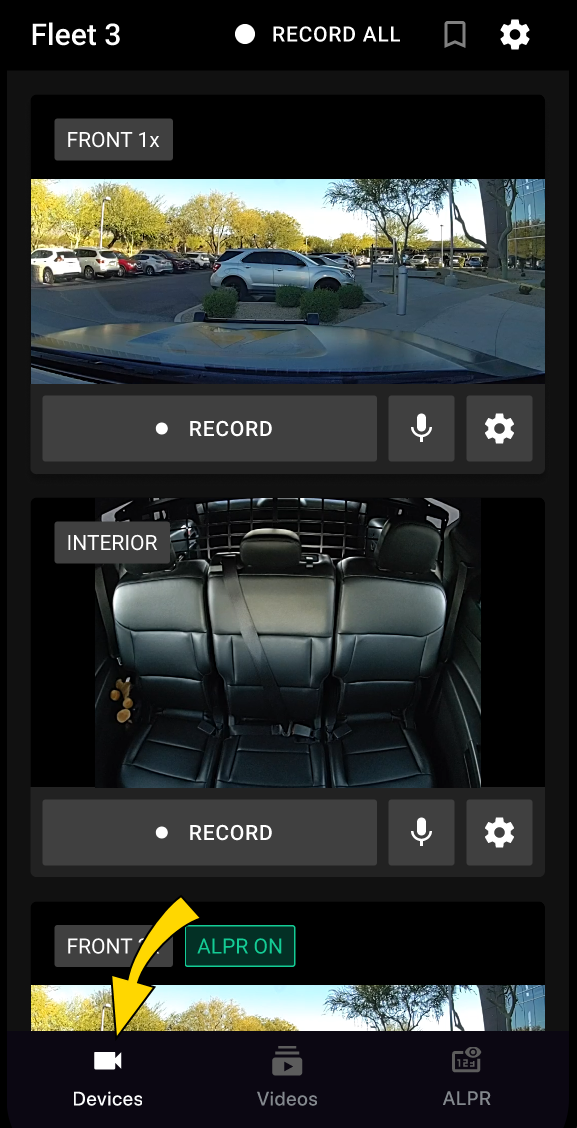

The Devices tab Shows the previously described button. shows live camera views and status in individual panels. Start or stop recording and control camera audio from these panels. If Dashboard is paired with an Axon Body Camera, that camera also appears here.

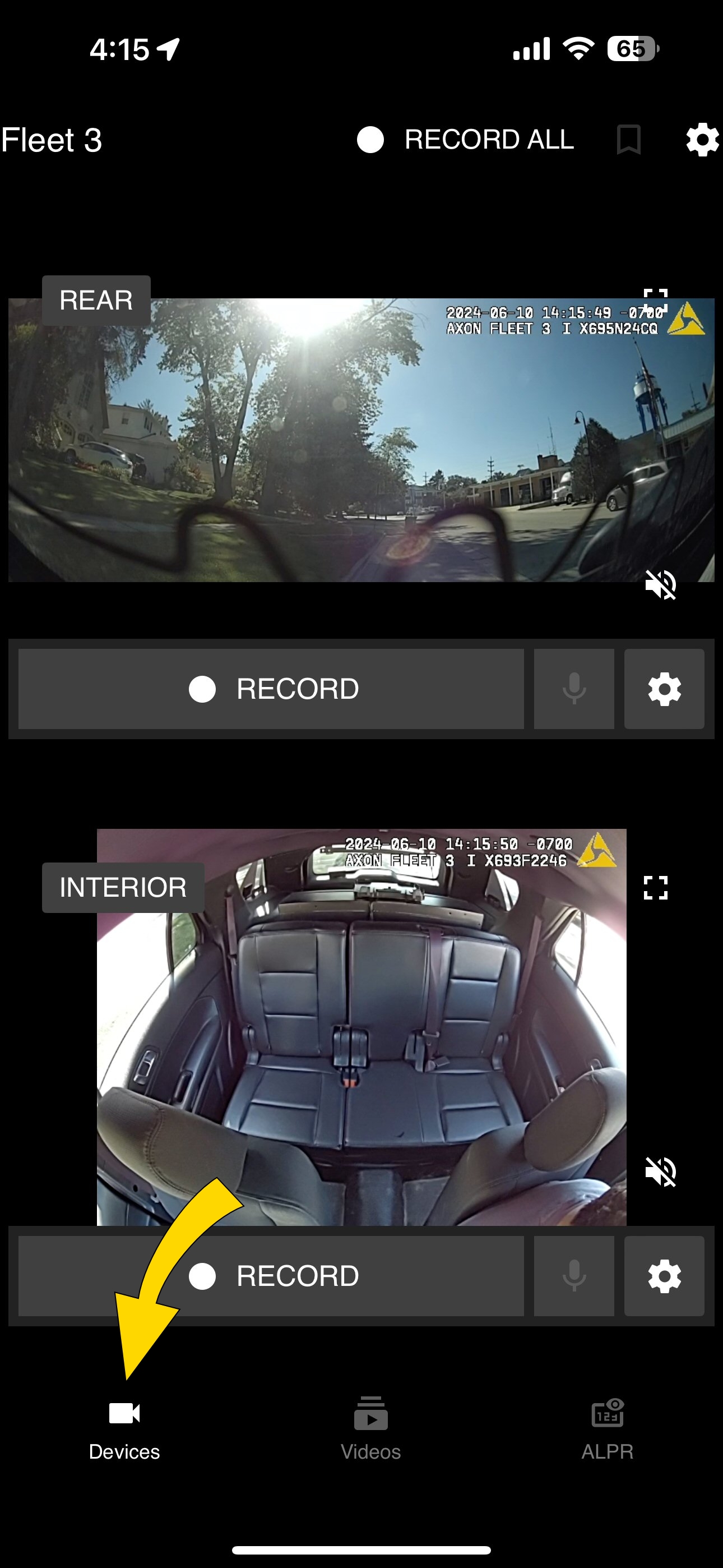

Shows the Fleet Dashboard Devices tab with the Devices button highlighted.Shows the Fleet Dashboard Devices tab with the Devices button highlighted.Shows the Fleet Dashboard Devices tab with the Devices button highlighted.Shows the Fleet Dashboard Devices tab with the Devices button highlighted.

Start and stop recording

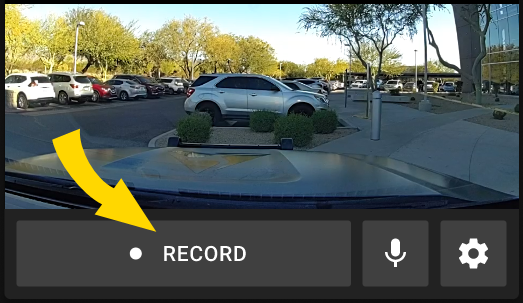

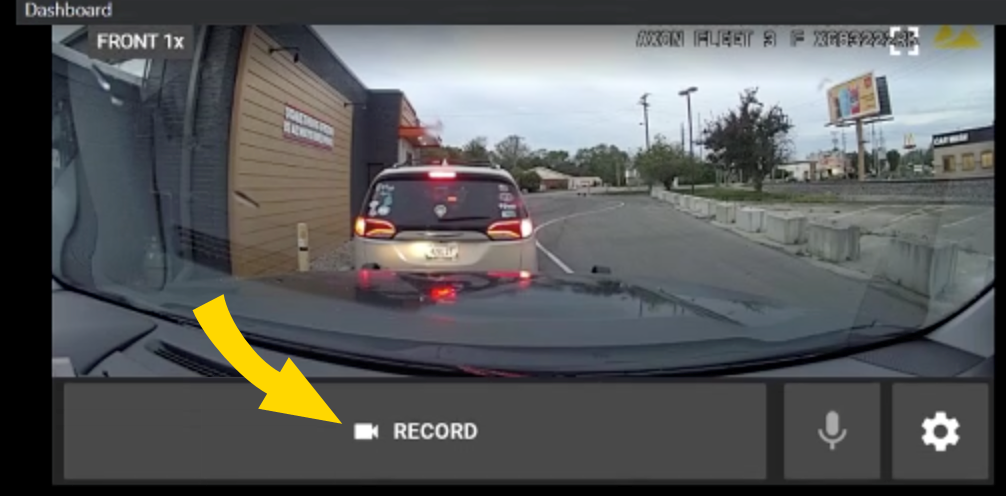

Select Record to start a recording for a specific camera. The button title will change to Stop. Select again to stop recording.

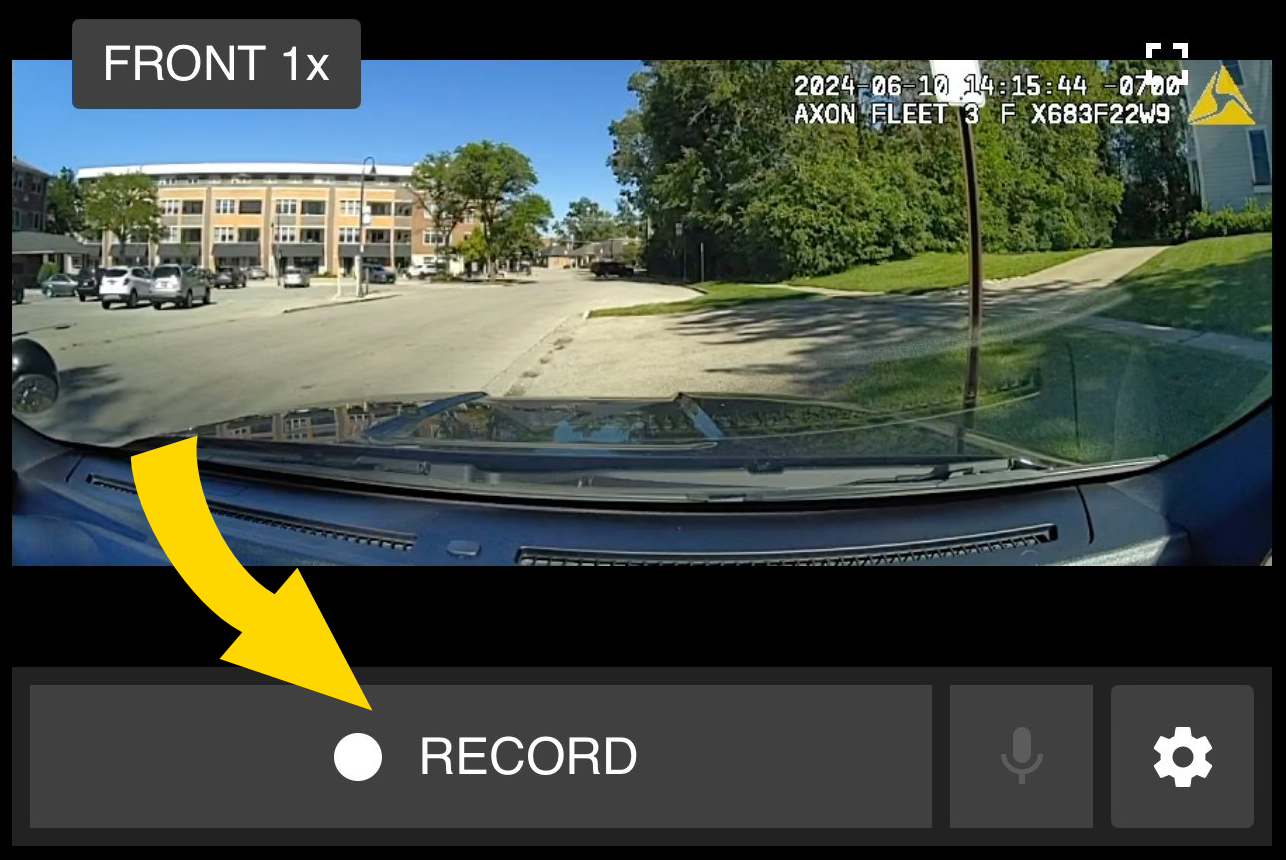

Shows a Dashboard camera tile with the Record button highlighted.Shows a Dashboard camera tile with the Record button highlighted.Shows a Dashboard camera tile with the Record button highlighted.

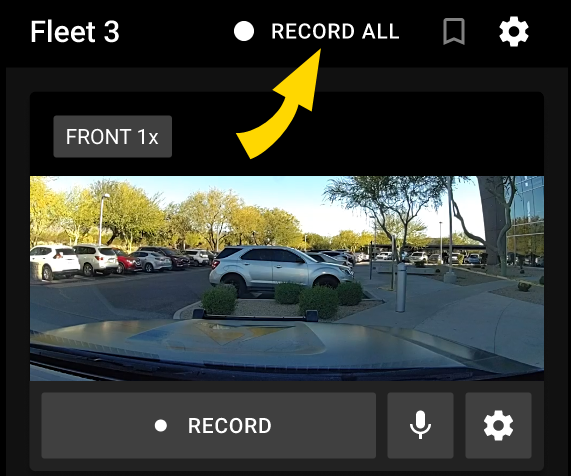

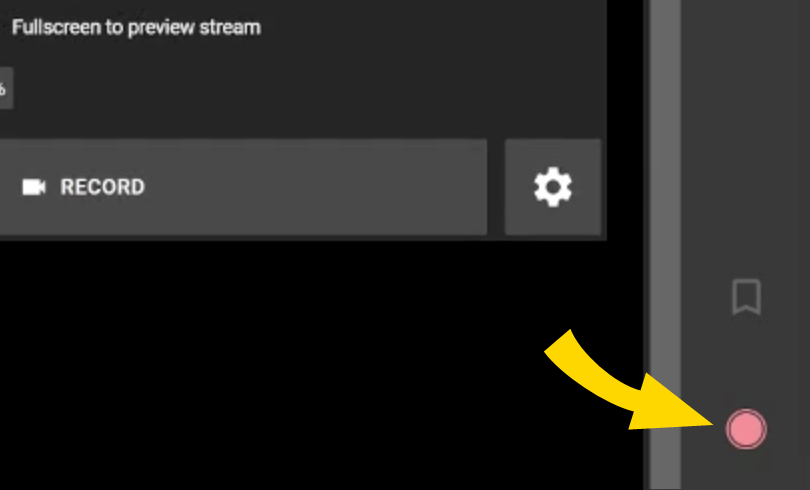

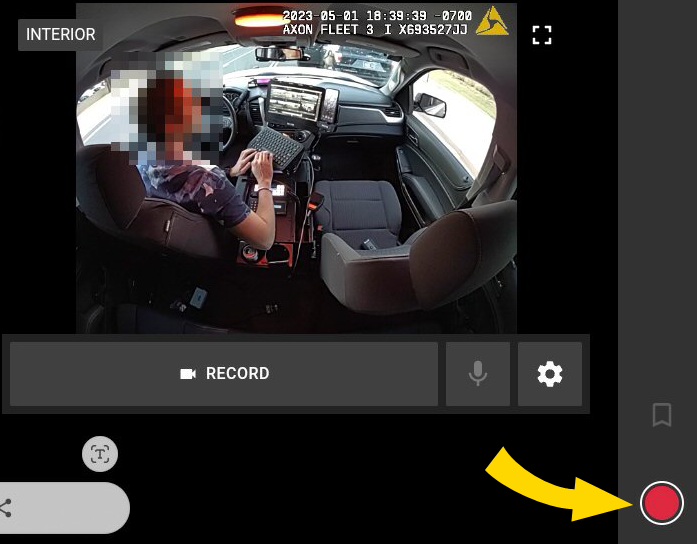

To start a recording on all cameras, select Record All (this does not include body cameras). Select again to stop recording on all cameras.

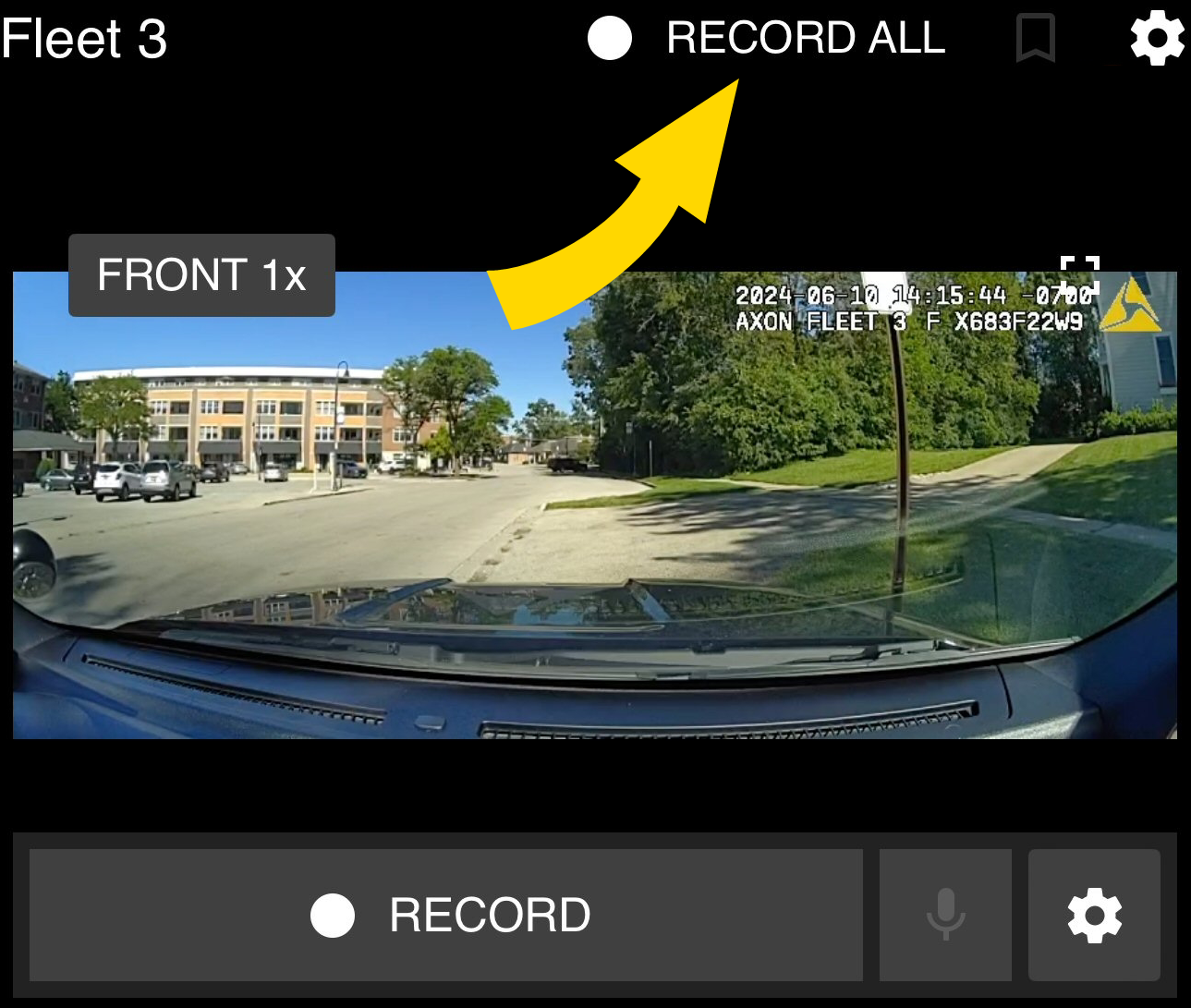

Shows the Fleet Devices Dashboard tab with the Record All button highlighted.Shows the Fleet Devices Dashboard tab with the Record All button highlighted.Shows the Fleet Devices Dashboard tab with the Record All button highlighted.Shows the Fleet Devices Dashboard tab with the Record All button highlighted.

Full screen display

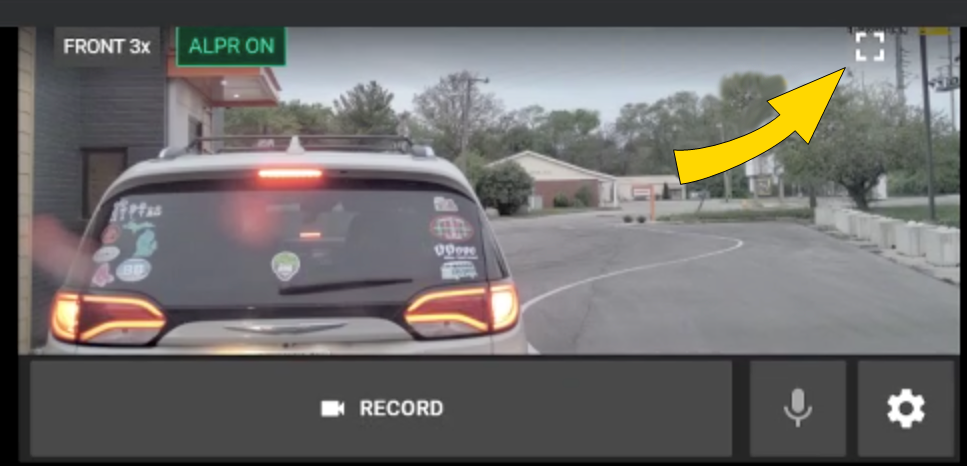

To display a camera view in full screen, select Full Screen Shows the previously described button..

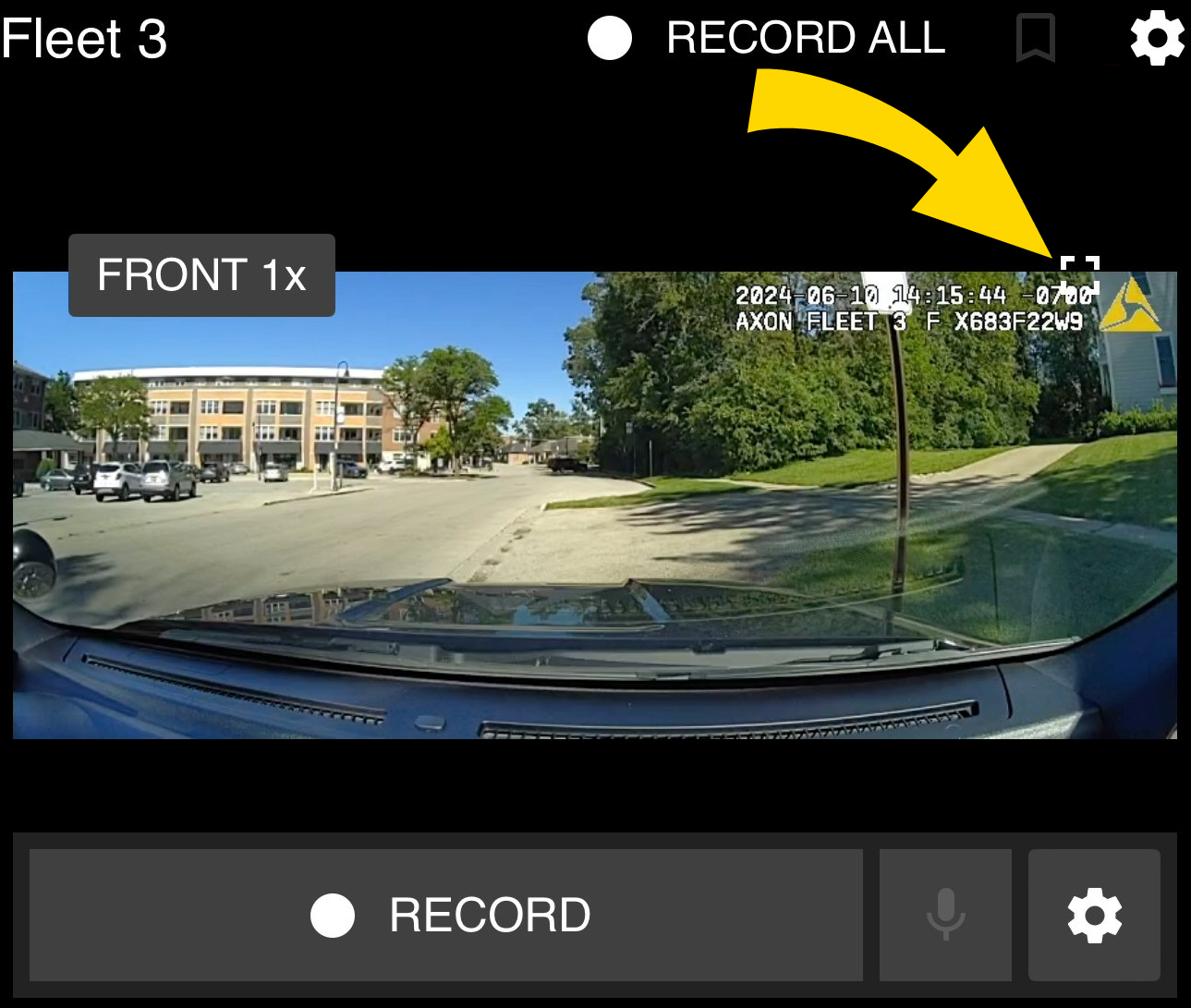

Shows a Dashboard camera tile with the Record button highlighted.Shows a Dashboard camera tile with the Full Screen button highlighted.

Select Exit Full Screen Shows the previously described button. on the full screen view to return to the normal camera panel view.

Mute audio

If your agency lets you mute and enable audio recording while the Fleet cameras are recording video, additional audio controls are available at the bottom of the associated camera panel.

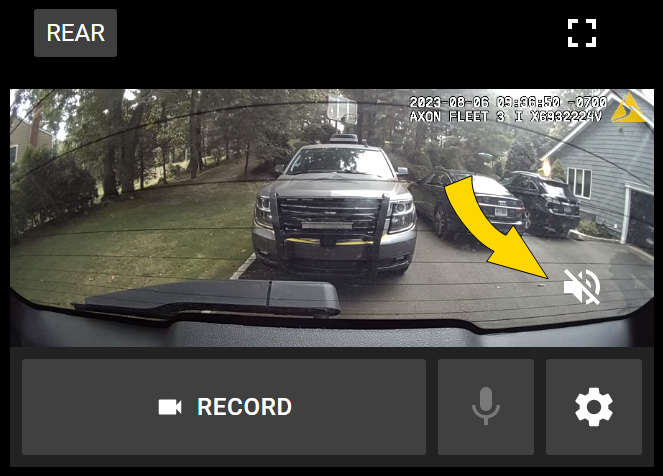

Select Mute Shows the previously described button. to mute the audio recording for the camera. Select again to cancel mute.
Shows a Dashboard camera tile with the Mute button highlighted.Shows a Dashboard camera tile with the Mute button highlighted.

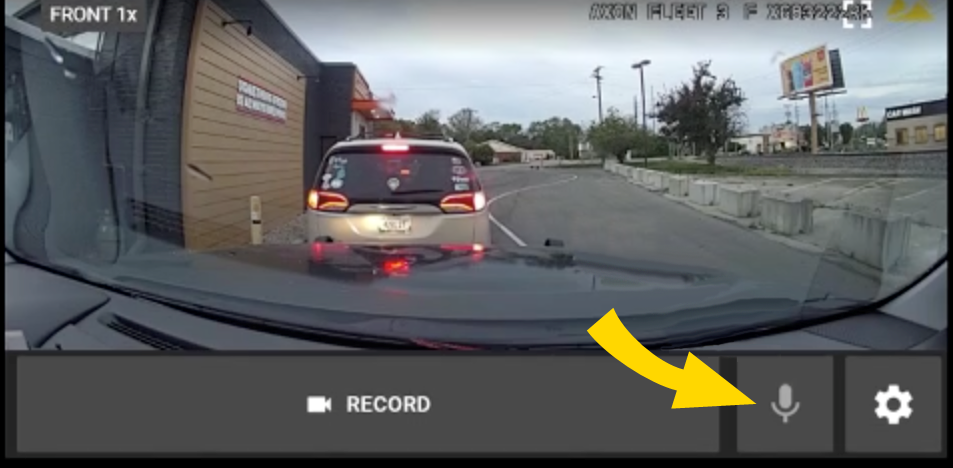

To listen to the audio from any interior camera, select the Microphone on the individual screen. Select again to toggle off.
Shows a Dashboard camera tile with the Microphone button highlighted.

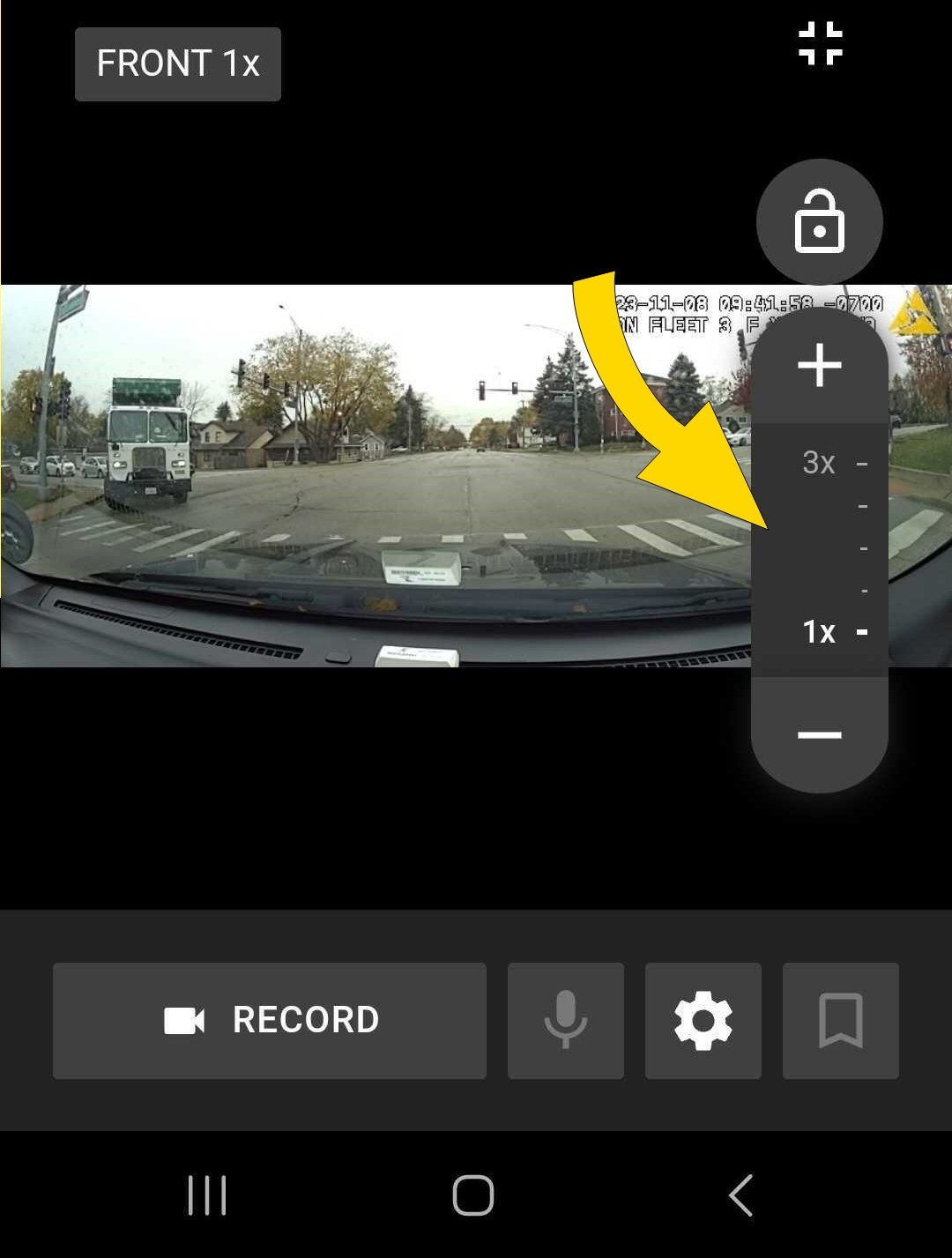

Zoom

The Axon Fleet 3 Dual-View Camera can zoom to magnify the image in both Buffering and Event modes.

Select Full Screen Shows the previously described button. for the front dual-view camera.

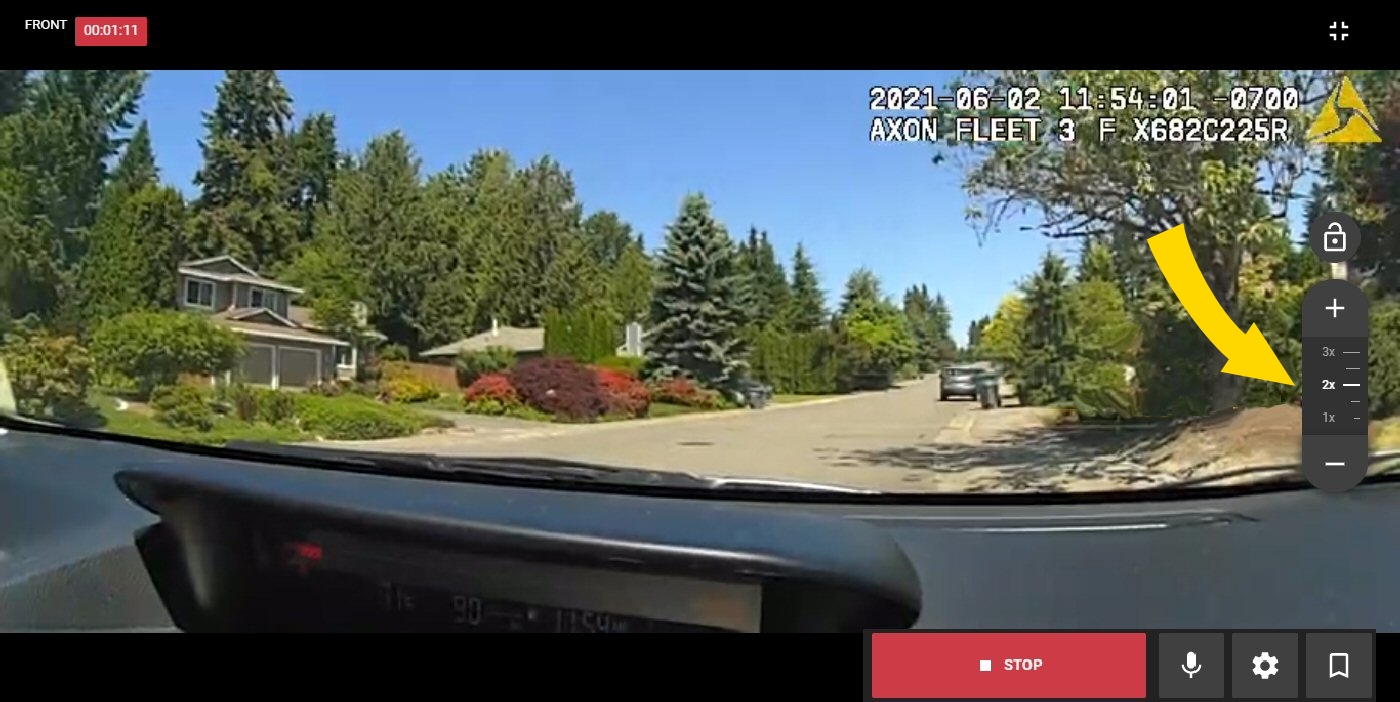

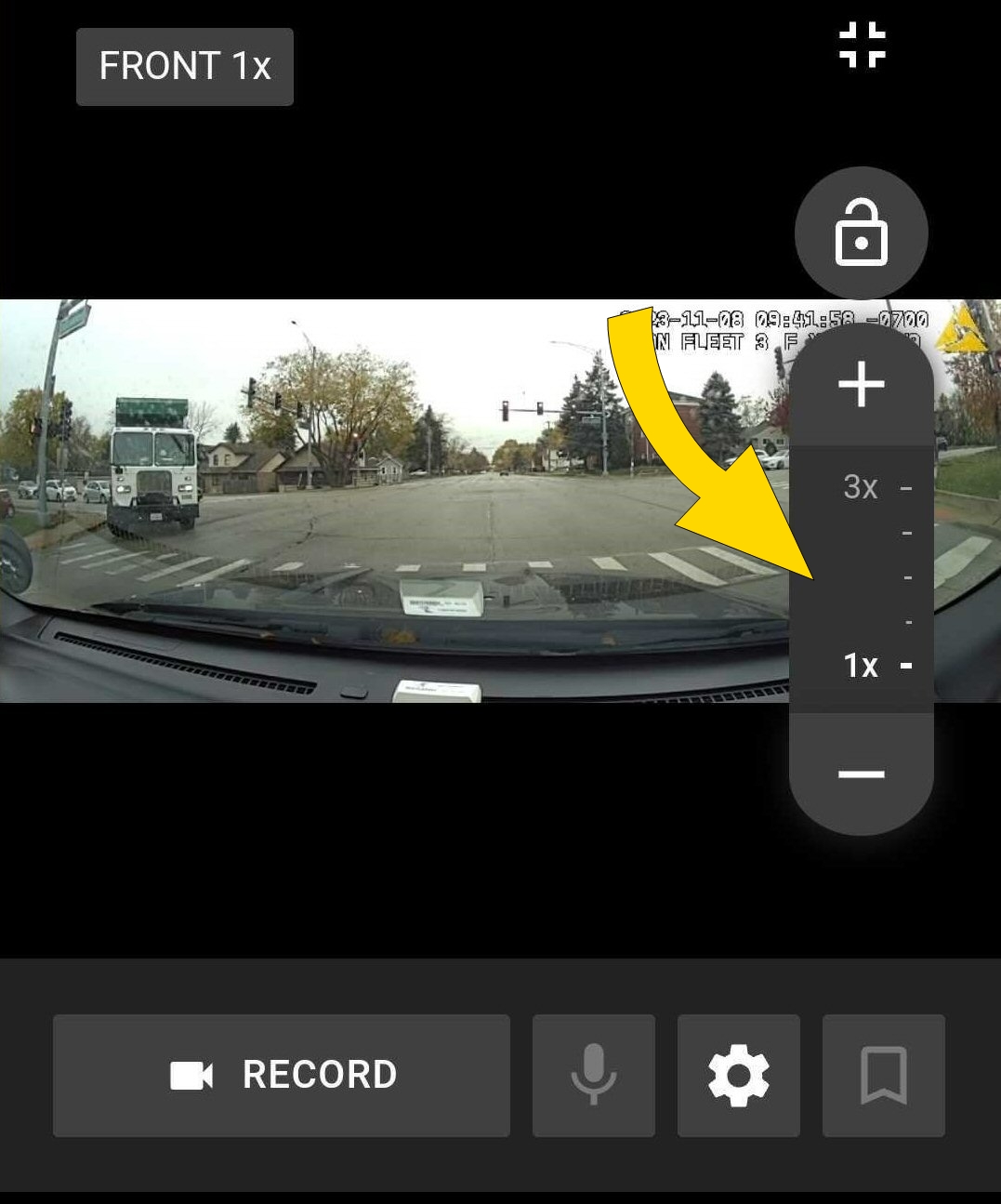

Use + Shows the previously described button. and – Shows the previously described button. to zoom in or out of the view. The Zoom will end after 10 seconds; select Lock Shows the previously described button. to lock the zoomed view.

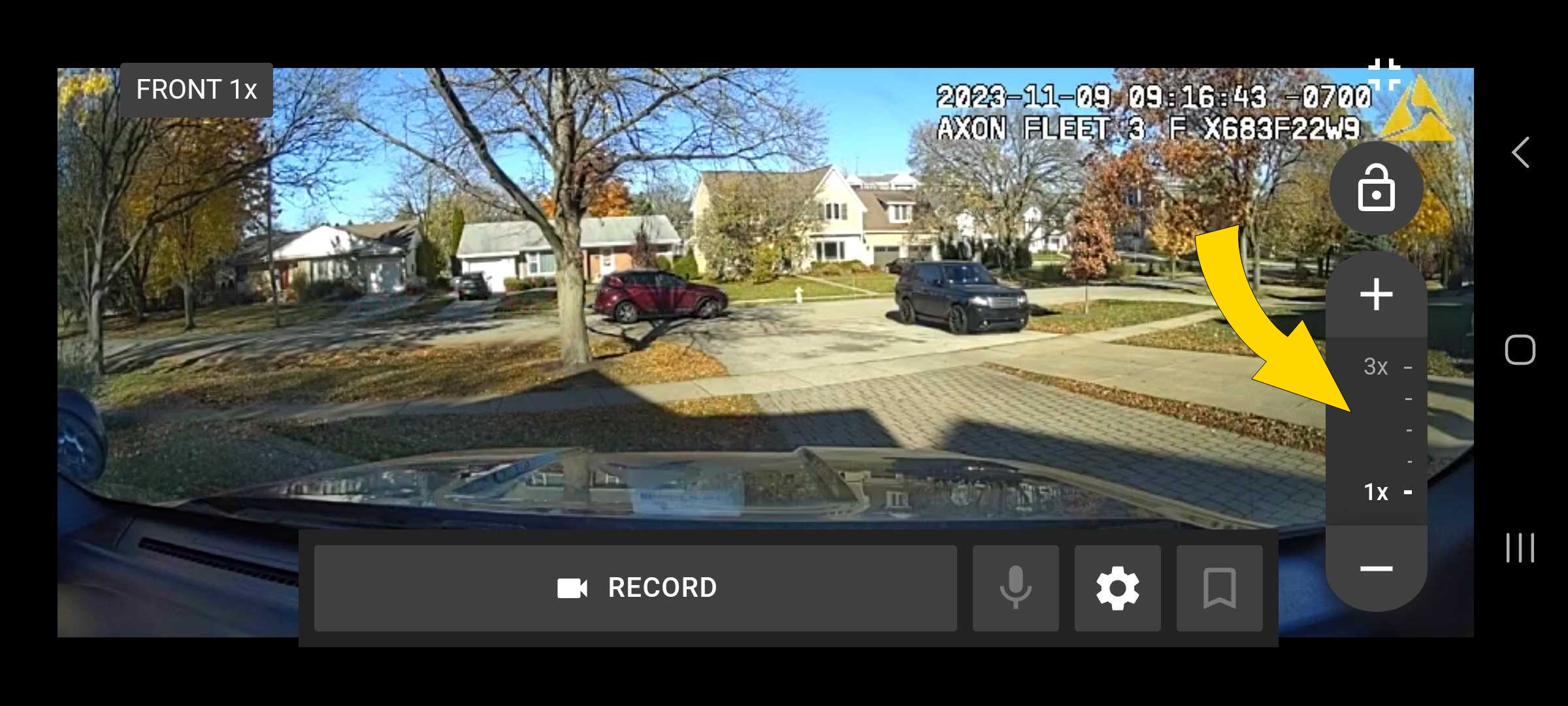

Shows a Dashboard camera tile with the camera Zoom bar highlighted.Shows a Dashboard camera tile with the camera Zoom bar highlighted.Shows a Dashboard camera tile with the camera Zoom bar highlighted.Shows a Dashboard camera tile with the camera Zoom bar highlighted.

Select Exit Full Screen Shows the previously described button. on the full screen view to return to the normal camera panel view.

If the ALPR camera is in full screen, zoomed, or recording, ALPR will turn off until zoom or recording has stopped.

Add markers while recording

Use markers to easily find an event when replaying video. The marker appears when you play the video in Axon Evidence and is documented in the audit trail.

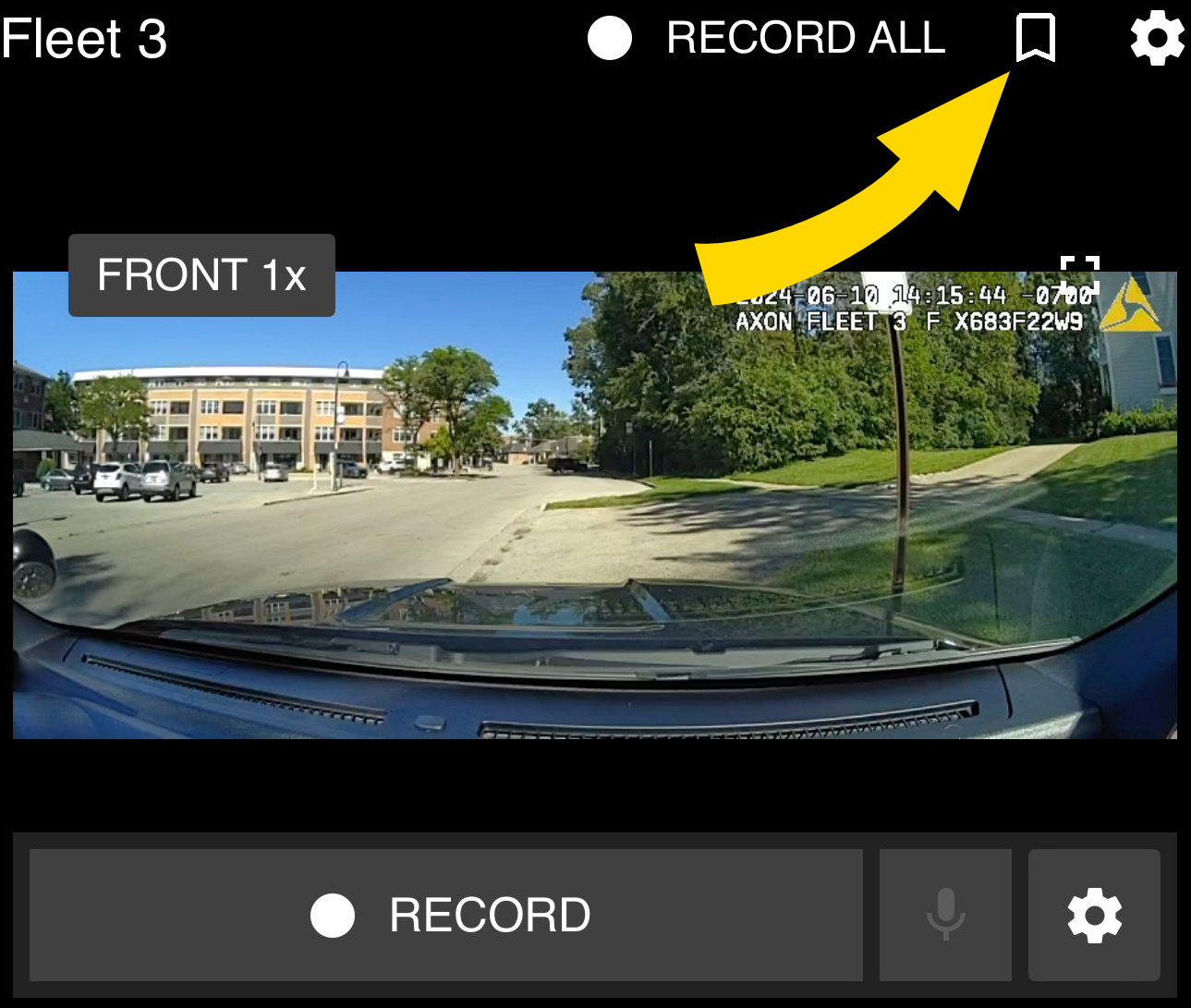

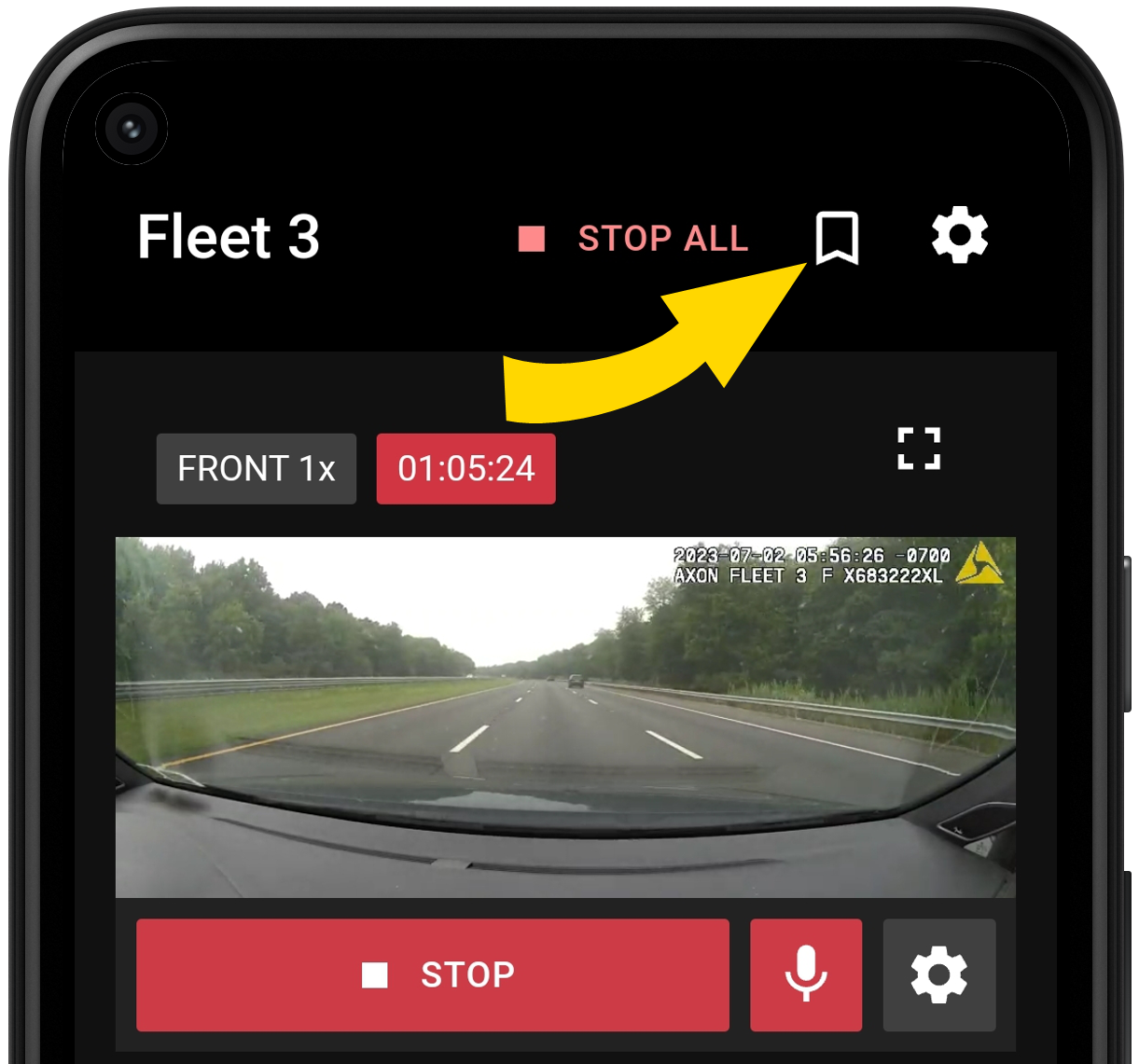

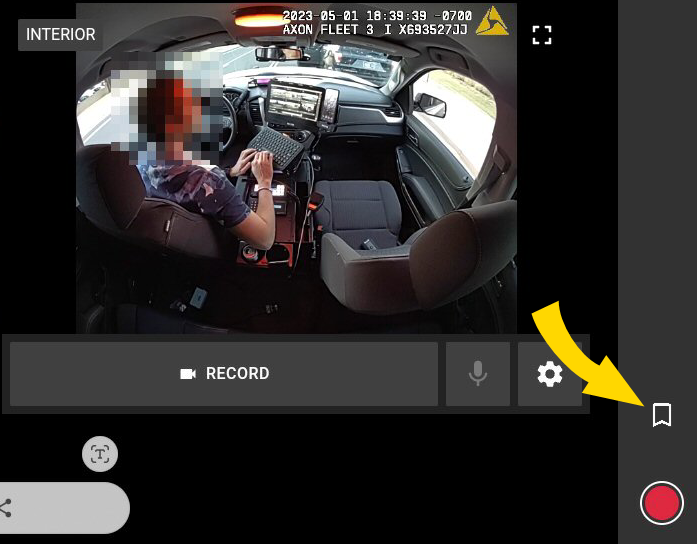

To add a marker while recording, select Marker at the bottom right. The marker is added to the recording for all cameras currently recording.

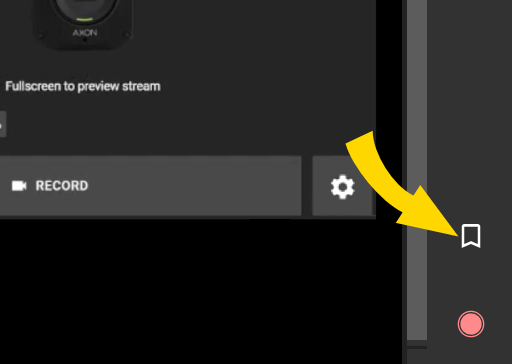

Shows the Fleet Dashboard Devices tab with the Marker button highlighted.Shows the Fleet Dashboard Devices tab with the Marker button highlighted.Shows the Fleet Dashboard Devices tab with the Marker button highlighted.Shows the Fleet Dashboard Devices tab with the Marker button highlighted.

Device settings

If allowed by your agency, you can adjust the settings for Fleet 3 and paired body cameras.

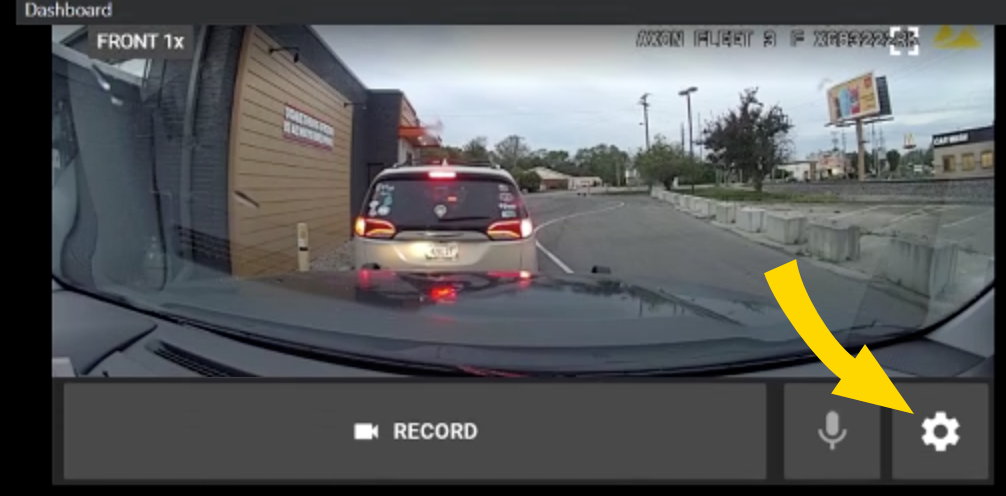

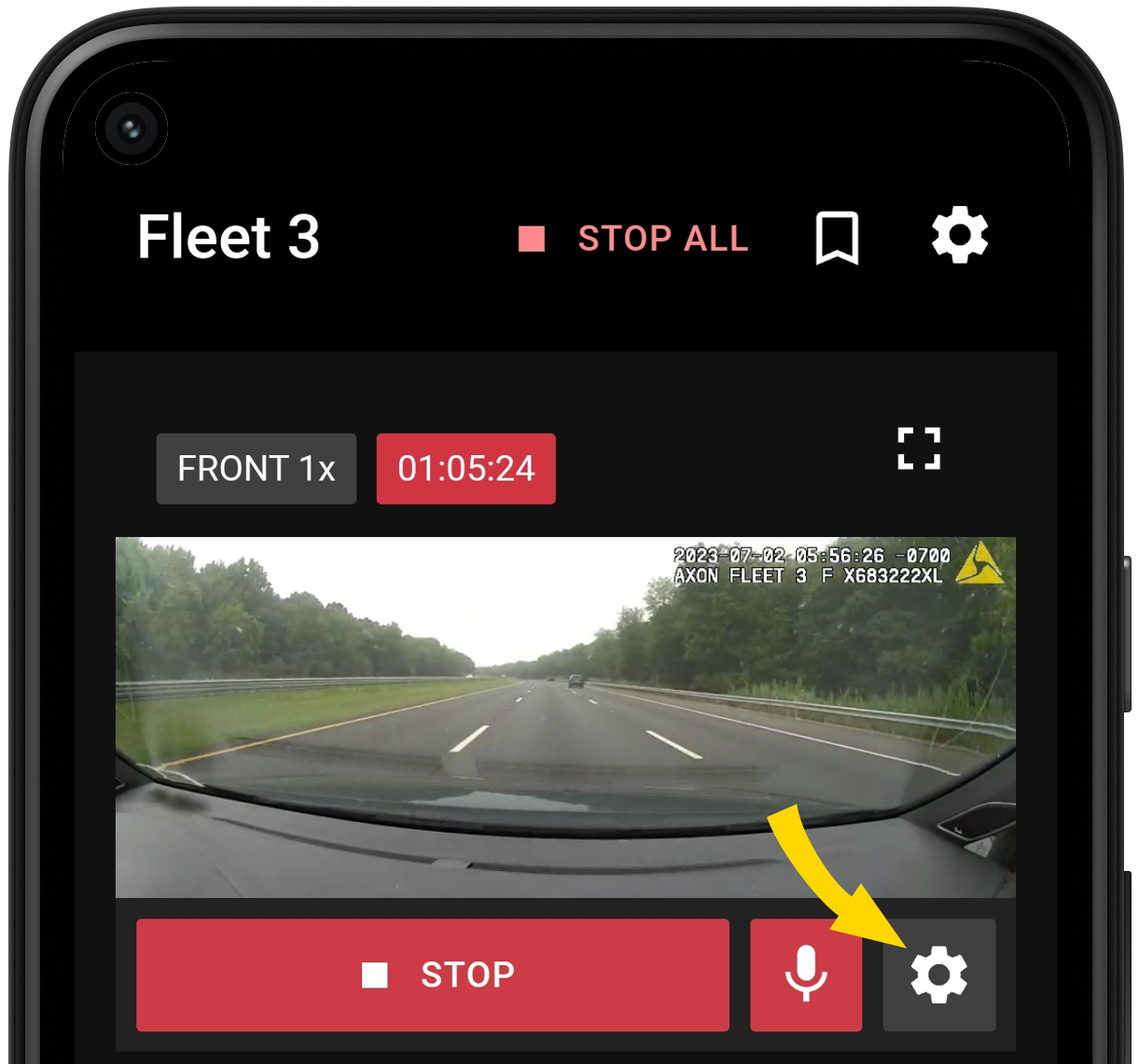

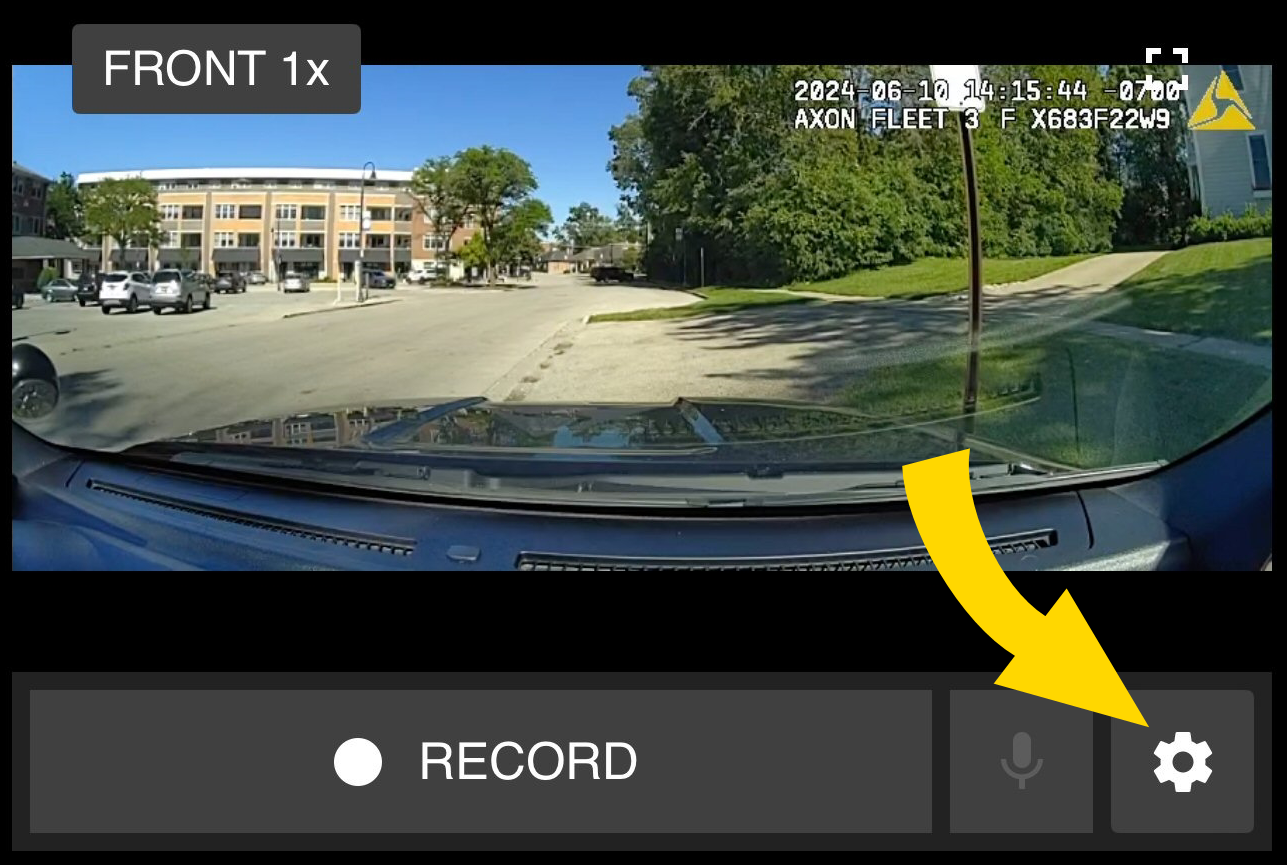

Select Settings Shows the previously described button. for the desired camera.

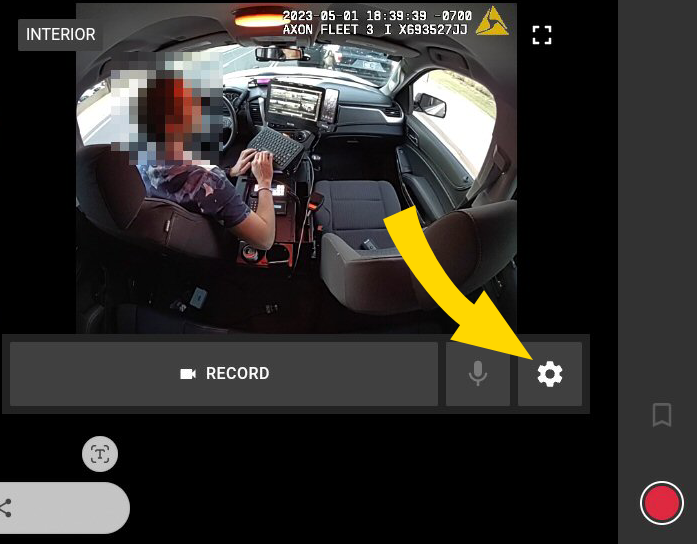

Shows a Dashboard camera tile with the camera Settings button highlighted.Shows a Dashboard camera tile with the camera Settings button highlighted.Shows a Dashboard camera tile with the camera Settings button highlighted.Shows a Dashboard camera tile with the camera Settings button highlighted.

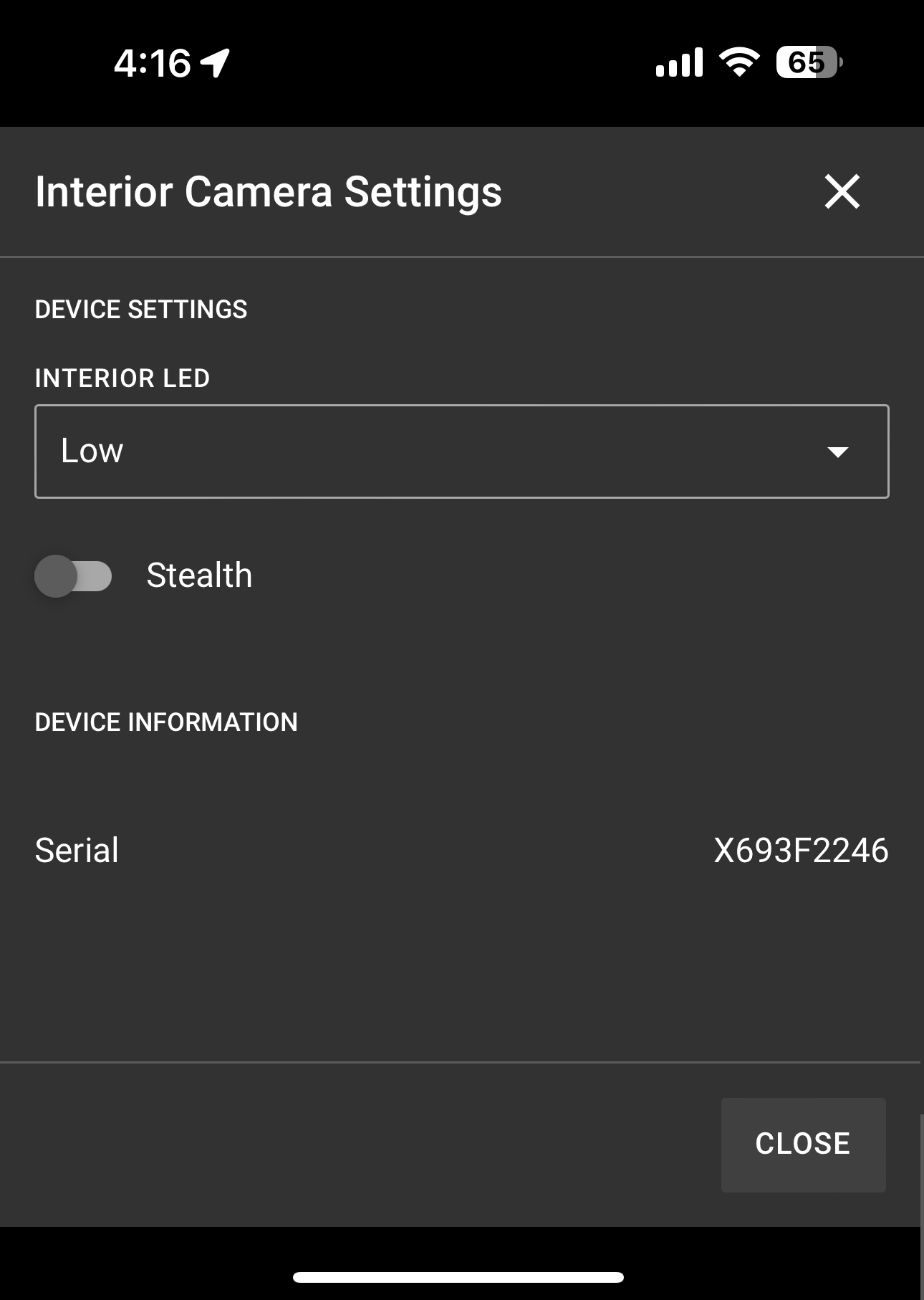

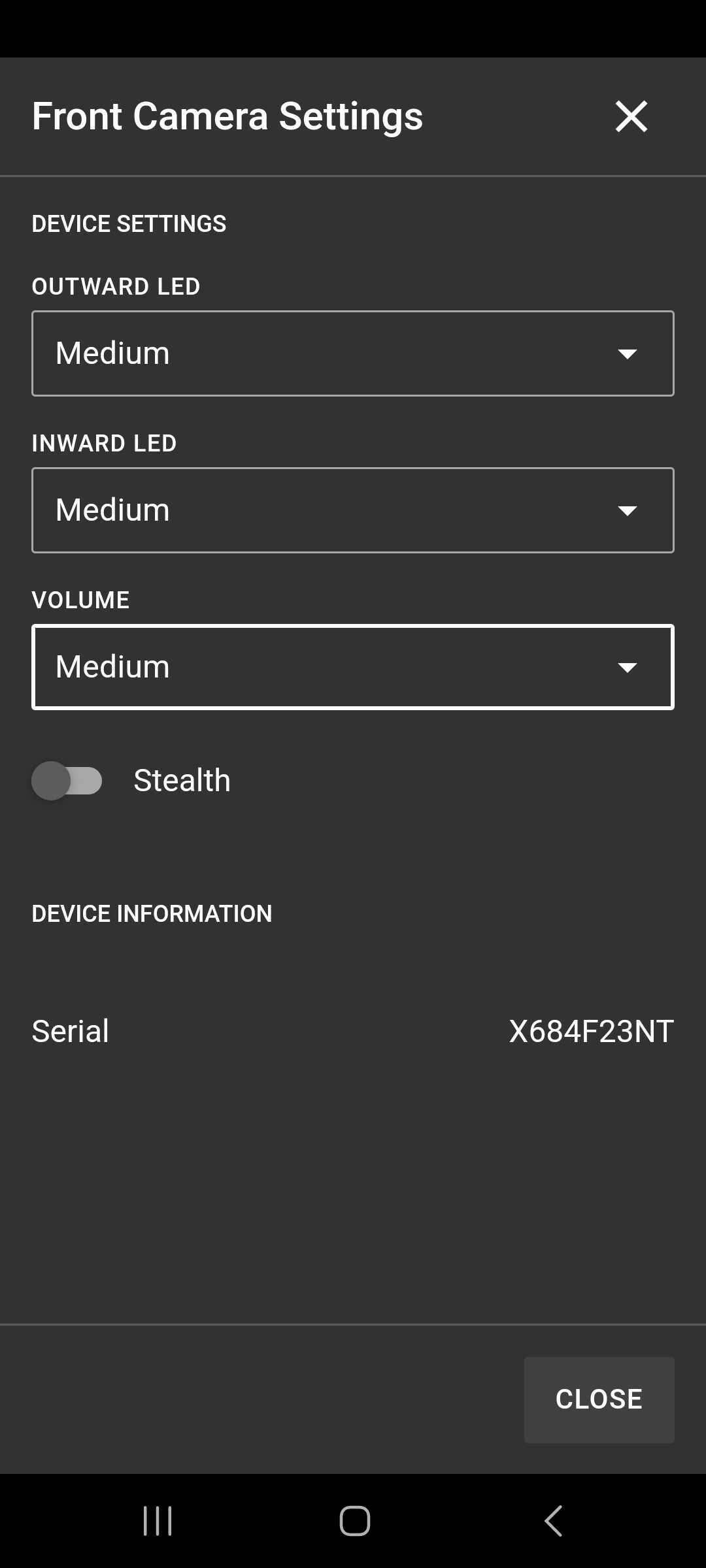

Adjust camera settings as needed.

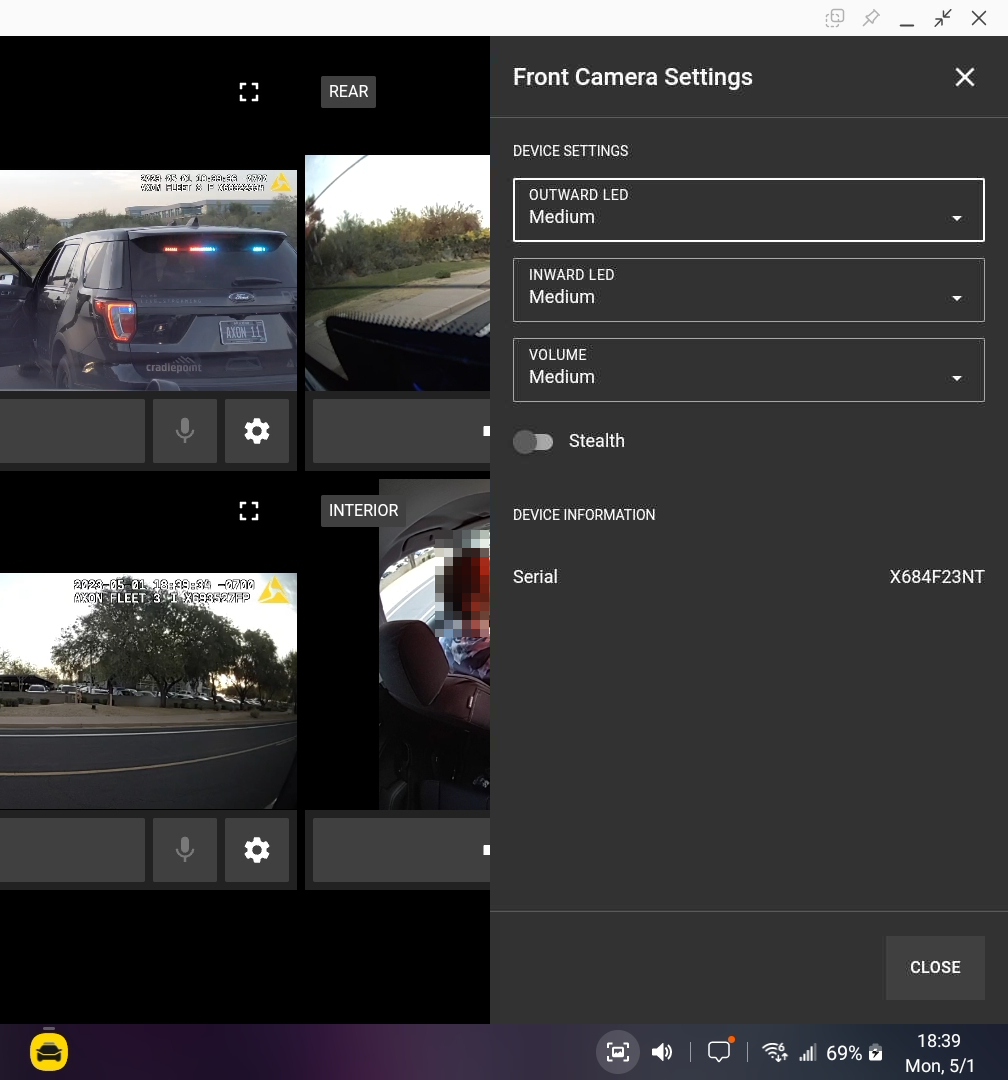

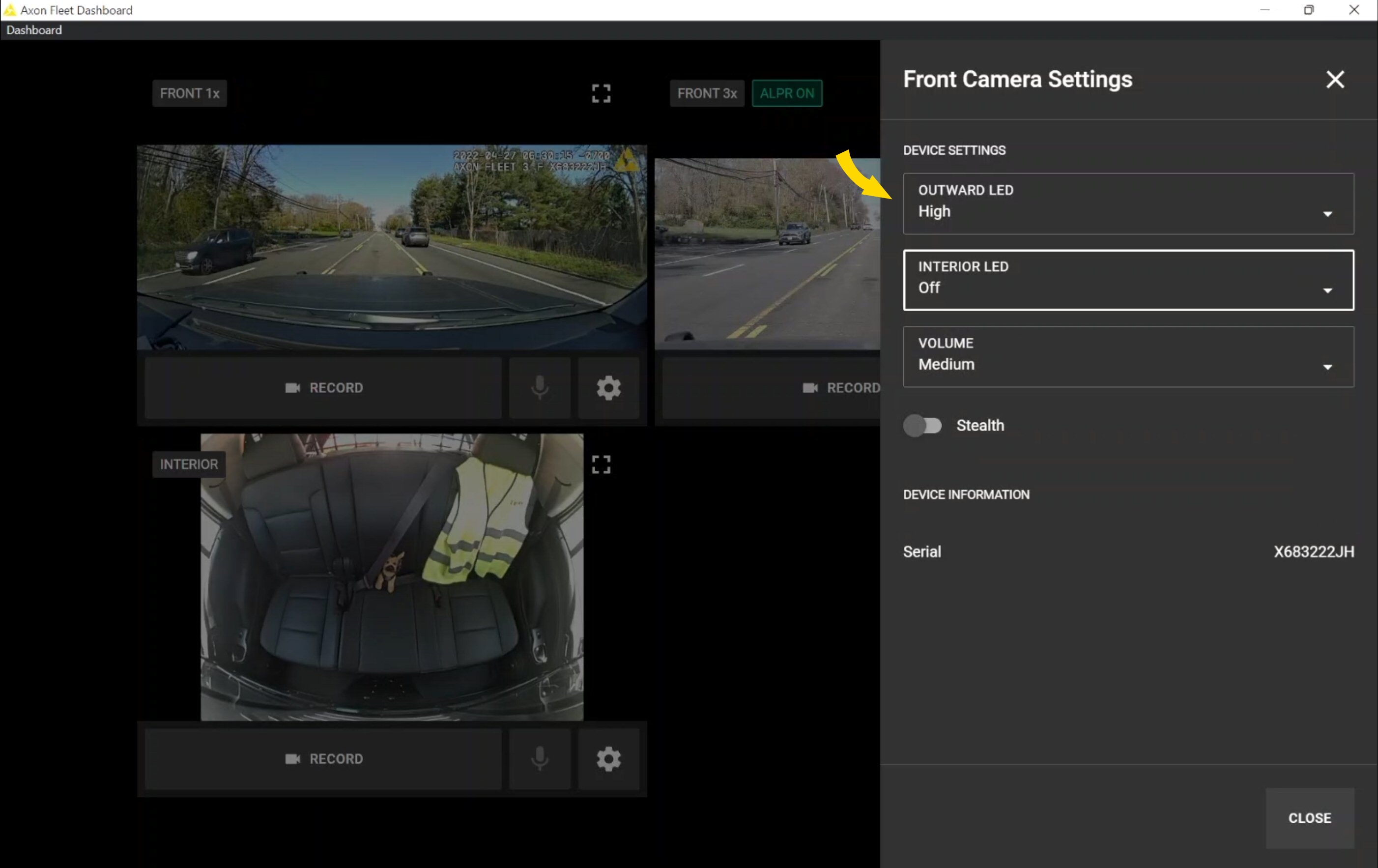

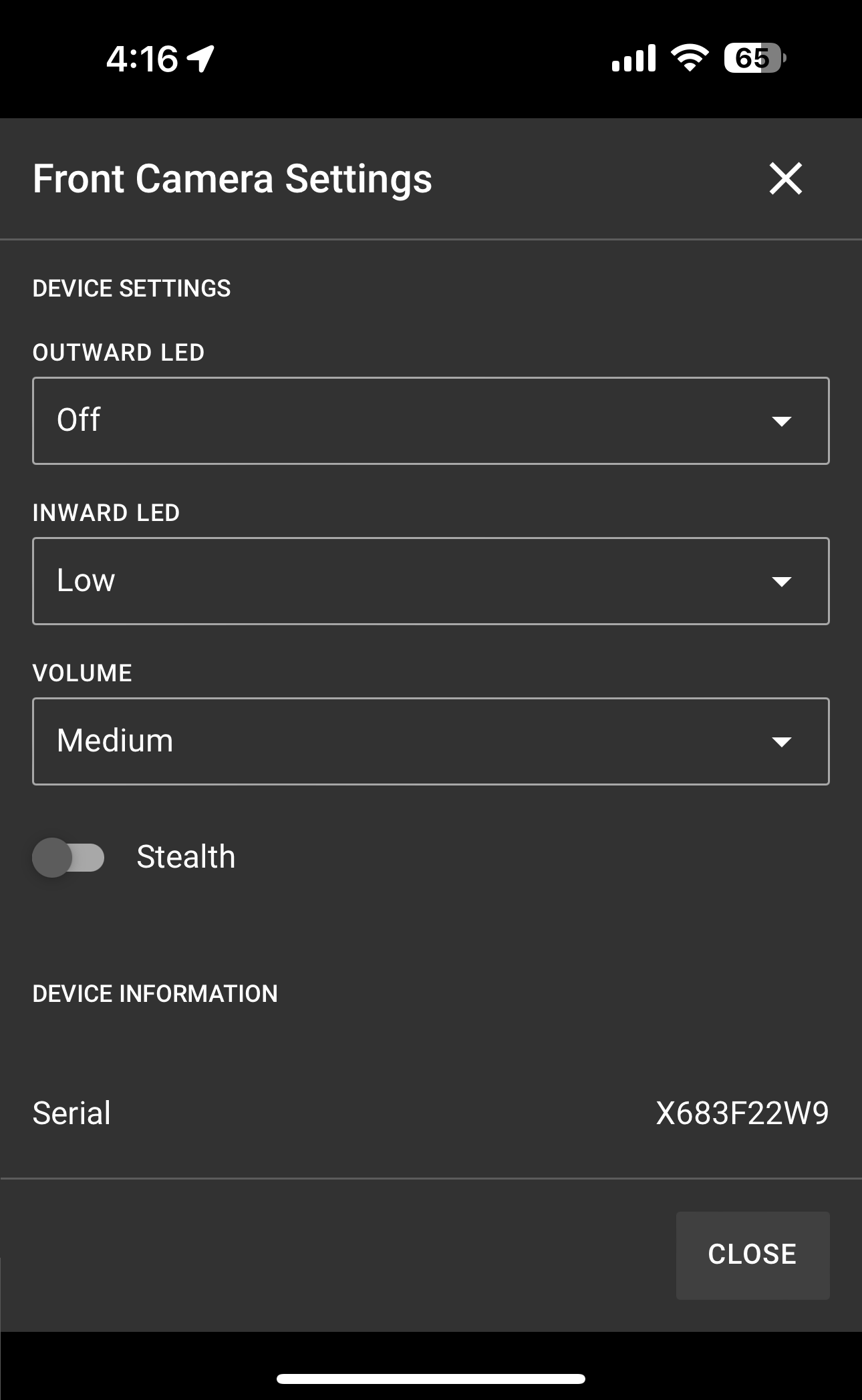

Shows a Dashboard camera Settings window.Shows a Dashboard camera Settings window.Shows a Dashboard camera Settings window.Shows a Dashboard camera Settings window. Shows a Dashboard camera Settings window.

Fleet 3 cameras

  • Volume
  • Outward LED
  • Inward LED
  • Stealth mode

Body cameras

  • Volume – Sets the volume of the camera’s audio prompts used to report camera status.
  • Vibration – Toggles vibrations (haptic feedback) used to report camera status.
  • LED brightness (Axon Body 3 only) – Sets the brightness of the triad (ring) LED and the top LED.
  • Stealth – Toggles Stealth mode. When on, the camera will not beep or vibrate, regardless of other settings, and all camera lights are off.
  • Orientation (Axon Flex 2 cameras only) – Sets whether the camera is mounted on left or right side of the body to ensure proper video orientation.
  • Remove camera pairing.

The camera serial number also appears on the Settings tab.

Save changes to exit.
