Use Axon Dashboard to control and support Axon Fleet 3 cameras from a mobile device (phone or tablet) or mobile digital computer/terminal (MDC/T, hereafter just MDC) in a police vehicle. Dashboard lets you start and stop camera recording, play recordings, and add metadata to videos. It also supports Axon Automatic License Plate Recognition (ALPR) system notifications and responses. Additionally, Dashboard provides the same functions as the Axon View mobile app for Axon body and Flex cameras, eliminating the need for both. Axon Fleet Dashboard requires that the MDC or mobile device be physically connected to the Fleet hub.

For a one-pager on the features of Dashboard, see the Quick Start GuideQuick Start GuideQuick Start Guide.

Because background notifications are not yet available in the iOS application, you must keep Fleet 3 Dashboard in the foreground of iOS to receive Hit notifications.

Download

The Fleet Dashboard application must be installed by a user with Admin privileges on the MDC. Both the MDC and hub require internet access for sign-in and registration.

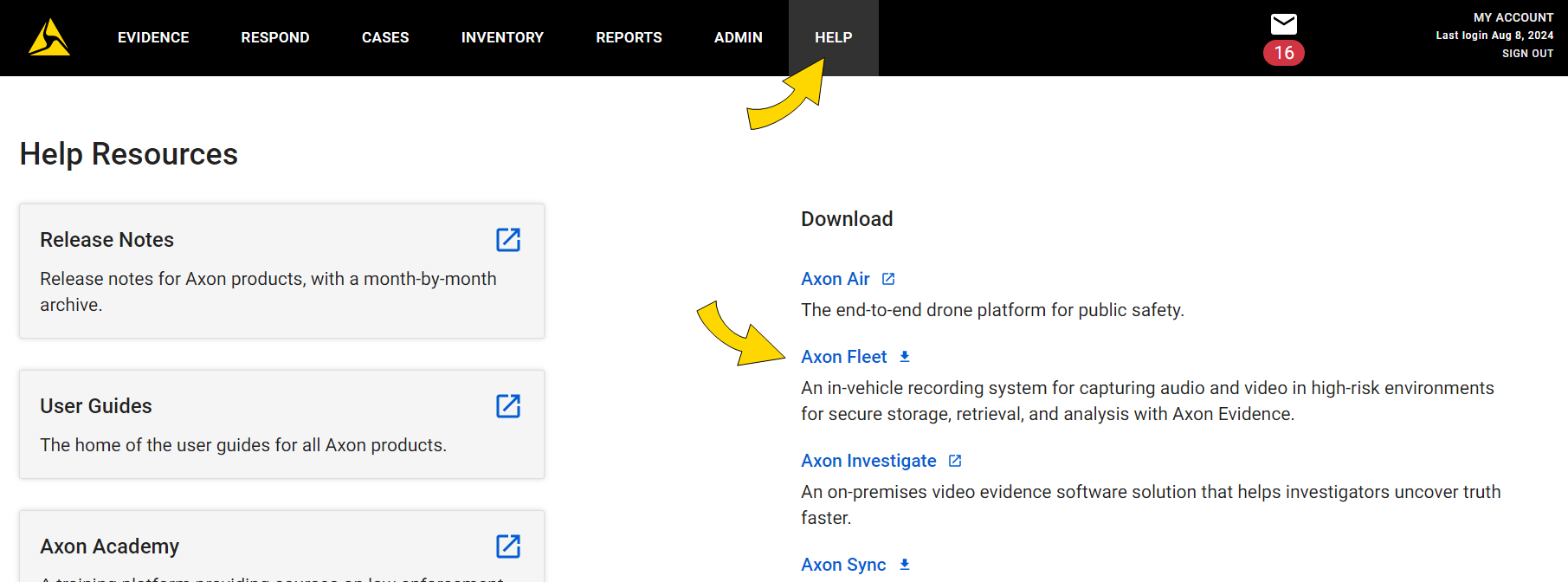

  1. In Axon Evidence, select Help and then Axon Fleet.
    Shows the Axon Evidence menu bars with arrows highlighting at Help Axon Fleet.
  2. Install and run the Dashboard application.
  3. Sign into Dashboard using your Axon Evidence credentials.
    • The first sign-in registers the devices to your Axon Evidence account.
    • On first sign-in, the hub may take up to an hour to check for hub and Dashboard updates. Force this update check any time using the Restart link on the Settings page.
    • An update can take up to 90 minutes to download, depending on connection speed. Once downloaded, a dialogue in Fleet Dashboard shows that an update is available. Accept the update. A Dashboard update typically completes within 15 minutes.

Download Axon Dashboard from Google Play.

Download Axon Dashboard from the Apple App Store.

System requirements

Axon Fleet Dashboard has the following minimum specifications for PC:

  • Operating system – Windows 10 or later
  • Processor – Intel Core i5-11th Gen or newer
  • Memory – 8 GB RAM or more
  • Storage – 10 GB of free space
  • Display – 1024x768 or higher
  • Network – 1 Gbps ethernet port or 1 Gbps USB3 ethernet adapter

While hardware with lower specs may still function, meeting these requirements will ensure the best possible experience with Axon Fleet Dashboard.

System requirements

Axon Fleet Dashboard has the following minimum specifications for Android:

  • Android 12.0 or higher
  • A vehicle with an Axon Fleet 3 camera and hub, as well as a Cradlepoint router or similar with a data connection to connect to Axon Evidence
  • Windows laptop or a browser to register the hub

System requirements

Axon Fleet Dashboard has the following minimum specifications for Samsung DeX:

  • Android 12.0 or higher
  • A vehicle with an Axon Fleet 3 camera and hub, as well as a Cradlepoint router or similar with a data connection to connect to Axon Evidence
  • Windows laptop or a browser to register the hub
  • A Samsung Galaxy device that supports Samsung DeX
  • A monitor, keyboard, mouse, and phone dock connected to your Samsung device
  • The latest version of Samsung DeX software

System requirements

Axon Fleet Dashboard has the following minimum specifications for Apple iOS:

  • iOS v16 or higher
  • A vehicle with an Axon Fleet 3 camera and hub, as well as a Cradlepoint router or similar with a data connection to connect to Axon Evidence
  • Laptop or a browser to register the hub
  • A monitor, keyboard, mouse, and phone dock connected to your Apple device
Tip The Dashboard user interface requires your device to use a screen zoom setting of no more than 125%. Higher zoom settings may cause display errors. If screen text or elements are overlapping, reduce your device's screen zoom level (terminology will differ between manufacturers) in system settings.

Sign in and out

Axon Dashboard lets two officers sign into the same session. Video evidence recorded when two officers are signed in will have dual ownership when uploaded to Axon Evidence, allowing both officers equal access.

If no officer is signed in when Dashboard uploads a file to Axon Evidence, it will use the last officers who were signed in.

First user sign-in

  1. Open Axon Dashboard.
  2. If signing in for the first time:
    1. Enter your agency's Axon Evidence URL and select Continue.
    2. Enter your Axon Evidence Username and Password and select Sign in.
  3. If the hub is not yet assigned to this vehicle:
    1. Select Create new vehicle.
    2. Enter the Vehicle ID and select Continue.

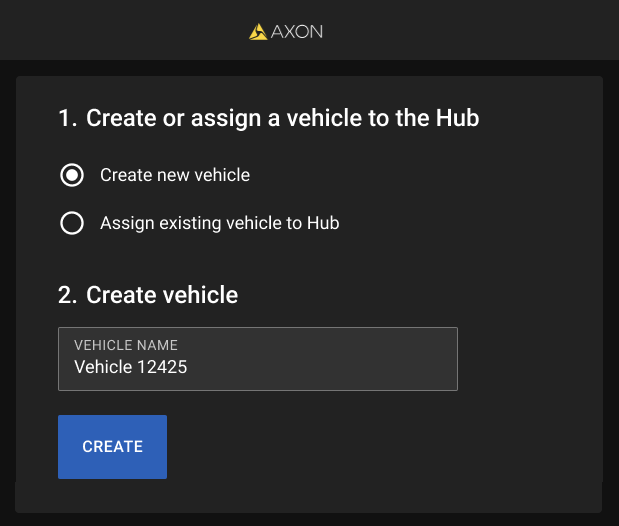

      Shows the Fleet Dashboard dialog box to create a new vehicle.
  4. If the vehicle already exists in Axon Evidence:
    1. Select Assign existing vehicle to Hub.
    2. Choose the vehicle name.
    3. Select Create Shows the previously described button..

The Axon Dashboard connects with Axon Evidence and retrieves the information associated with the vehicle so it can connect to the vehicle cameras and Fleet hub.

Camera status appears after you sign in.

Second user sign-in

To sign in a second user:

  1. Go to the Settings page.
  2. Tap Add Officer.
  3. Enter the Axon Evidence Username and Password and select Sign In.

Sign in with IWA

If your agency uses Integrated Windows Authentication (IWA), toggle on the external login option in each installed Dashboard app.

  1. Sign out of Dashboard.
  2. Open Dashboard and select the Dashboard menu.

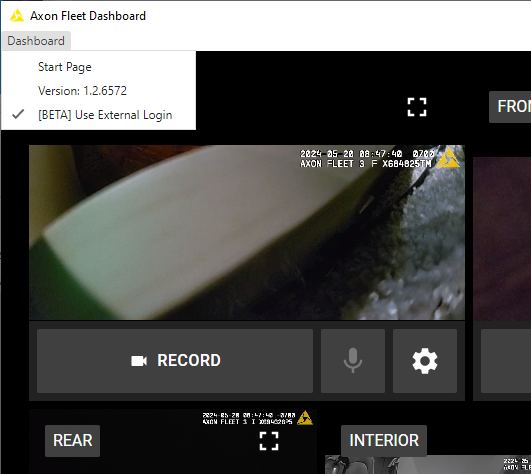

    Shows the Fleet Dashboard menu with Use External Login selected.
  3. Select [BETA] Use External Login so it has a check mark.
  4. Select Dashboard again and ensure the check mark remains. If it doesn't, close Dashboard and restart at step 2.

Sign out

  1. Go to the Settings page.
  2. Select Sign Out in the section with your information.



this topic ð Dashboard overview



Last modified - 19 February 2026
