Microphone introduction
The Axon Fleet 3 wireless microphone is a hardware solution for audio capture outside the Fleet 3-equipped vehicle where Axon body cameras are not deployed. The charge base is mounted in the vehicle, connected to the hub via ethernet, and handles all charging and data needs for the mic while docked. The charge base also facilitates all pairing and audio communication to the microphone while in use. The Axon Fleet 3 Hub supports up to two wireless microphones and two charge bases per vehicle.
Wireless microphone performance:
Range of 1,000 ft (300 m) with unobstructed line-of-sight and at least 500 ft (150 m) with a person and vehicle obstruction.- Lasts 12 hours with full charge. In the charging base, recharges to 85% within 90 minutes.
- Uses the Axon RAPIDLOCK mounting solution, sharing all the same mounting configurations as Axon body cameras.

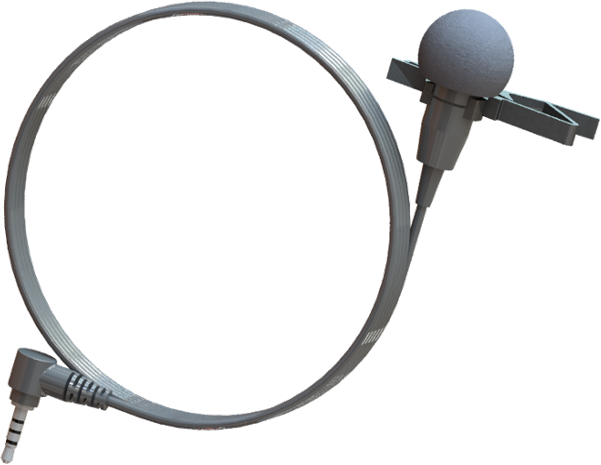

- Includes an optional lapel microphone (shown at right) for superior audio capture quality and wind noise cancellation.
Hardware kit
The Fleet 3 Wireless Microphone Kit (SKU 72035) includes the following components:
| SKU |
Component |
|---|---|
| 72020 | Fleet 3 wireless mic |
| 11509 | belt clip, RAPIDLOCK |
| 72022 | Fleet 3 wireless mic, charging base |
| 72024 | Fleet 3 wireless mic, charging base, remote antenna |
| 72032 | Fleet ethernet cable, CAT6, 20 ft |
| 72025 | Fleet 3 wireless mic, lapel mic |
Charge outside the vehicle
A hardware kit for charging outside the vehicle consists of an AC power over ethernet (PoE) injector and charging base, To supplement your in-vehicle charging with in-office charging, purchase an additional charging base and an injector for each microphone.
| SKU |
Component |
|---|---|
| 7202 | Fleet 3 wireless mic, AC power Poe injector |
| 7202 | Fleet 3 wireless mic, charging base |
