Tilt Select

If configured to do so, the TASER 7 will change its cartridge selection if you quickly flick your wrist to the side 90 degrees while holding the energy weapon. This is useful when the energy weapon is loaded with both Close Quarter and Standoff cartridges, and you want to select the cartridge for the target at the appropriate range. The LASER sights will adjust automatically for the cartridge that is in the active bay.

Tilt Select is not available with the TASER 7 CQ energy weapon.

An agency has three options for configuring the Tilt Select feature:

• Enabled – All Cartridge Types
• Enabled – Training Only
• Disabled

When the Training Only option is selected, the Tilt Select feature will only work with inert or HALT cartridges.

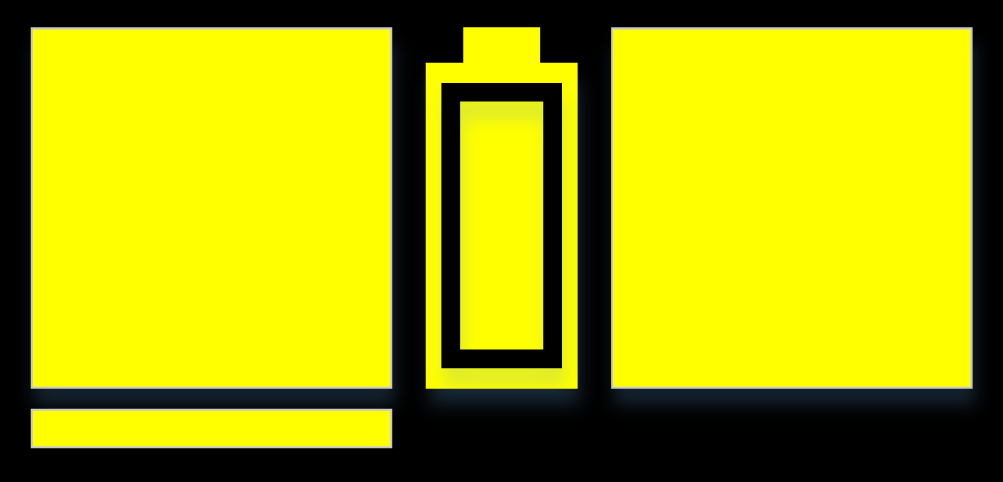

By default, the leftmost cartridge (Bay 1) is selected. When this feature is active, a bar will display underneath in the active bay on the CID.

To select the right cartridge (Bay 2), flick your wrist in either direction so the energy weapon is tilted 90 degrees and return the energy weapon to the upright position in less than one second. Once the energy weapon is returned to the upright position, the CID should show that the active bay has changed.

If it becomes necessary to reselect the left cartridge (Bay 1), flick your wrist to either direction 90 degrees.

If the safety is moved to the down (SAFE) position, the next time the energy weapon is armed the left cartridge will be selected. This will be true even if the right cartridge was selected before the safety was moved to the down (SAFE) position.

If a cartridge is deployed, the next cartridge is selected automatically. The energy weapon will not select a deployed cartridge.
