Concepts and features

This section provides foundational guidance for working with the Axon DataStore v1, including how key fields like dates, identifiers, and employee data are structured and used. It also covers important concepts such as time zone handling, data types, and naming conventions, along with pre-built reporting views that streamline access to commonly requested records data.

Date and time fields

There are several different naming conventions to be aware of when viewing and using date and time fields from the Axon DataStore, including:

  • Data types: datetime2 and datetimeoffset
  • Time zone conversions
  • Time zone conversion columns
  • NoTz time zone columns
  • Daylight savings time considerations

Data types: datetime2 and datetimeoffset

All date and time values in the DataStore are assumed to be in UTC (+00:00) unless a different time zone is explicitly specified.

There is a mixture of datetime2 and datetimeoffset data types in the DataStore. The datetimeoffset data type is like datetime2, except it also has time zone awareness. The datetimeoffset data type has the time zone offset (as calculated from UTC) appended to the column value. For example:

datetime2:

 2025-12-10 12:32:10

datetimeoffset:

 2025-12-10 12:32:10 +00:00

datetimeoffset converted to EST:

 2025-12-10 07:32:10 -05:00

In the Axon DataStore, you can recognize if the data type is a datetimeoffset if the time zone offset appears at the end in the format [+|-] hh:mm. A SQL Client like Azure Data Studio shows the column data types in a view:

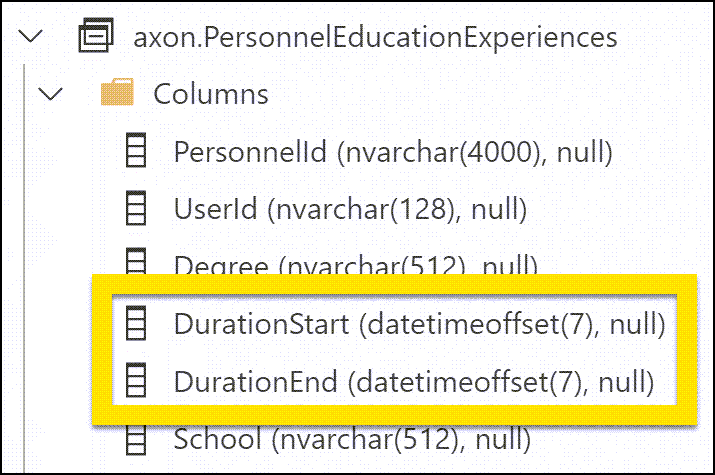

The image shows the column structure of the axon.PersonnelEducationExperiences table in a database. The table contains fields such as PersonnelId, UserId, Degree, and School. A yellow highlight emphasizes the DurationStart and DurationEnd columns, which store datetimeoffset values, indicating the start and end times of an educational experience. The structure suggests that the table tracks education history for personnel.

Time zone conversions

For better performance when you are filtering by date, use the UTC version of the field in your WHERE clause. Then use two AT TIME ZONE functions on the value you are comparing against, first to your local time zone and second to UTC. Example:

Copy
WHERE r.[CreatedAt] >

= CONVERT(datetime2, '2024-01-01T00:00:00.000') AT TIME ZONE 'Central Standard Time' AT TIME ZONE 'UTC'

This first converts the value to CST by adding the time zone offset:
2024-01-01 00:00:00 -06:00

Then, that CST value is converted to UTC:
2024-01-01 06:00:00 +00:00

Comparing the DataStore values against the UTC value (2024-01-01 06:00:00 +00:00) is the most efficient comparison and yields the fastest results since the values are stored and indexed in UTC.

The most common time zones are listed below, but the full list can be found here.

  • Eastern Standard Time
  • Central Standard Time
  • Mountain Standard Time
  • US Mountain Standard Time <-- use this one for Arizona
  • Pacific Standard Time

Time zone conversion columns

For commonly selected fields in queries (e.g., OccurredTo and OccurredFrom), the values are converted to the five contiguous US time zones. This conversion is denoted by _Time Zone in the column name. For example:

  • OccurredFromDate_Eastern
  • OccurredFromDate_Central
  • OccurredFromDate_Mountain
  • OccurredFromDate_Arizona
  • OccurredFromDate_Pacific

For better performance, use these converted columns only in select lists and not in any filters or WHERE clauses. For WHERE clauses, use the UTC column and convert your time zone to UTC as described above.
The image shows a table displaying date and time values for different time zones, including Mountain, Arizona, and Pacific. Each column represents an `OccurredFromDate` timestamp with timezone offsets indicating the corresponding time zone. The values include specific dates and times, formatted with a high level of precision, including milliseconds and UTC offsets. The table demonstrates how the same event time is adjusted based on regional time zones.

NoTz time zone columns

The time zone offset and millisecond precision can be challenging for tools like Excel or PowerBi to understand, so in some dashboard views the datetime2 data type is converted and the milliseconds and offset (e.g., +5:00) do NOT appear at the end of the value.

To indicate that these columns are different from other views, NoTz appears in the column name. For example:

  • OccurredFromDateNoTz_Eastern
  • OccurredFromDateNoTz_Central
  • OccurredFromDateNoTz_Mountain
  • OccurredFromDateNoTz_Arizona
  • OccurredFromDateNpTz_Pacific

Note that while the values themselves have been converted to the indicated time zone, the time zone offset is not included at the end of the value. This makes export and analysis to external tools (e.g., Tableau, Excel) easier.
The image shows a table displaying timestamps for different time zones, including Mountain, Arizona, and Pacific. Each column represents an `OccurredFromDateNoTz` value without timezone offsets. The timestamps are consistent across regions, showing the same date and time values but without specifying a UTC offset. This format is useful for storing and comparing datetime values without timezone conversions.

Daylight savings time considerations

When you are performing an analysis where precision and seconds count (e.g., how long did it take to arrive on-scene after being dispatched), Axon recommends using the UTC column.

Using the UTC column bypasses complications that arise from inaccurate daylight savings time conversions (which could incorrectly indicate that the officer arrived 60 minutes earlier or later than actual).

Identifiers

The table primary key ID columns are named Id prefixed by the singular version of the topic contained in the table.

These primary keys are auto-increment bigint values unique to the DataStore; they do not come from the source data and are typically regenerated when the data updates.

Fields ending in Number (e.g., IncidentNumber, ReportNumber, CallForServiceNumber) generally refer to the friendly ID of the entity in question.

Fields ending in ExternalId (e.g., CallForServiceExternalId, IncidentExternalId) refer to the unique ID in the native system of the entity in question.

  • For Axon Records and Axon Standards, these are generally UUIDs.
  • For Axon Dispatch, in many cases these are UUIDs, but for things like history records they can be bigint.

Employee data

Employees appear in the DataStore in three ways:

  • Users
  • Officers
  • Authors

Users

In the DataStore, employees listed in Users means they were added to a report because they were involved somehow (for example, as a driver, passenger, arresting officer, witness, etc.). As a result, you will see ReportNumber as a column.

An employee might be listed in Users many times since there is a row for each report the employee has been added to.

Officers

Officers includes all people employed at the agency. These are not linked to reports, and each employee should only be listed once.

To retrieve employee information for a user, link Users to Officers using ExternalId:

Copy
SELECT o.FirstName,
    o.LastName,
    o.Username,
    o.BadgeNumber
FROM axon.Users u
INNER JOIN axon.Officers o ON o.OfficerExternalId = u.ExternalId
AND u.ReportNumber = '<insert report number here>'

Author

If the Author of the report is also a User (they were directly involved in the incident and appear in the report as an involved party), the author is listed in axon.Users for that report.

If the author was not involved in the incident and is only authoring the report, they are only listed under Author.

To retrieve the employee information for an author, link axon.Reports.AuthorExternalId to axon.Officers:

Copy
select o.FirstName,
    o.LastName,
    o.Username,
    o.BadgeNumber
FROM dw.Reports r
INNER JOIN axon.Officers o on o.OfficerExternalId = r.AuthorExternalId
AND r.ReportNumber = '<insert report number here>'

Reporting views for common Records requests

Reporting views provide all information in one view, so you don't need to join on additional objects. These views can be integrated to create dashboards or external reports an external tool (e.g., PowerBi, Tableau, Excel).

Contact your Axon representative if there are other dashboards type views you would like to see to answer your common reporting needs.

Note

An Incident Report is what Axon uses to refer to a Crime Report or General Offense Report (GO).

Information from Incident Reports are sent to NIBRS and contain data about crimes that occurred.

Offense views

axon.MostRecentGeneralOffense

This view contains the most up to date information for an incident report and shows the latest data combined with the most recent contribution or supplement.

This view can give you information, such as:

  • List incidents that occurred after Dec 1, 2023
Copy
SELECT *
FROM axon.MostRecentGeneralOffense
WHERE OccurredFromDate >

CONVERT(datetime2, '2023-12-01') AT TIME ZONE 'Eastern Standard Time' AT TIME ZONE 'UTC'
  • List incidents that were created in the last 24 hours
Copy
SELECT *
FROM axon.MostRecentGeneralOffense
WHERE CreatedAt > DATEADD(hour, -24, GETDATE())



axon.OffensesToLatestReport

This view contains all offenses in the latest information for an incident report. This view contains the following report location columns, so the data can be exported to an external mapping tool:

  • Latitude
  • Longitude
  • District
  • Sector
  • Zone

This view can give you information, such as:

  • List offenses that have individual exceptional clearance dates/types
  • How many <insert offense here> happened in this district?
Copy
SELECT *
FROM axon.OffensesToLatestReport
WHERE NibrsUcrCode = '13A'
   AND District = 'NORTHWEST'
  • How many <insert offense here> happened during this period?
Copy
SELECT *
FROM axon.OffensesToLatestReport
WHERE OccurredFromDateNoTz_Eastern > CONVERT(datetime2, '2023-10-01') AT TIME ZONE 'Eastern Standard Time' AT TIME ZONE 'UTC'
   AND OccurredFromDateNoTz_Eastern < CONVERT(datetime2, '2024-01-01') AT TIME ZONE 'Eastern Standard Time' AT TIME ZONE 'UTC'
   AND NibrsUcrCode = '220'

Vehicle views

axon.VehicleTheftsAndRecovery

This view contains all vehicle information where the involvement starts with "STOLEN" or "RECOVER." If there is a recovered date or recovered value, that information is also shown.

This view can give you information, such as:

  • How many x make and y model were stolen or recovered in the last 6 months?
Copy
SELECT *
FROM axon.VehicleTheftsAndRecovery
WHERE Make = 'HONDA'
   AND Model = 'CIVIC'
   AND OccurredFromDate > DATEADD(Month, -6, GETDATE())

Property views

Note

The Property views only include data for property items in the Axon Property Management module. These views do not contain data for property recorded in third-party property management systems.

axon.PropertyInCustody

This view allows for easy viewing of property item details (storage/home location, who collected). If the piece of property also has a related incident in Axon Records, some incident information is also included (Latitude, Longitude, Recovered Details).

This view can give you information, such as:

  • How many x are on-hand?
  • What is the property in location x?
  • Who collected property x?



axon.PropertyStolenAndRecovery

This view lists property from incident reports where the involvement contains "STOLEN" or "RECOVER."

This view can give you information, such as:

  • How many catalytic converters were stolen in the last 7 days?
  • How many black bicycles were stolen this year?

Victim and suspect views

axon.VictimOffensesDashboard

This view allows you to easily see victim information (e.g., Age, Race, Ethnicity) and the related offenses (NIBRS Code, Description, Occurred From/To). Specifically, this view pulls in data for people from the latest incident report where the person's involvement or role is Victim.

This view can give you information, such as:

  • How many people were victimized for x offense during last month?
  • What were the injuries or weapons related to x offense?



axon.SuspectOffensesDashboard

This view allows you to easily see suspect information (e.g., Age, Race, Ethnicity) and the related offenses (NIBRS Code, Description, Occurred From/To). Specifically, this view pulls in data for people from the latest incident report where the person's involvement or role is Arrestee or Offender.

This view can give you information, such as:

  • Demographic information (Height, Sex, Race, etc.) for x offense in the last 7 days
  • What weapons were involved with x offense?

Field mappings

This guide shows how the fields in the Axon Records incident report map to the columns in the Axon DataStore. Each section also includes examples of SQL Select statements.

Incident

Overview

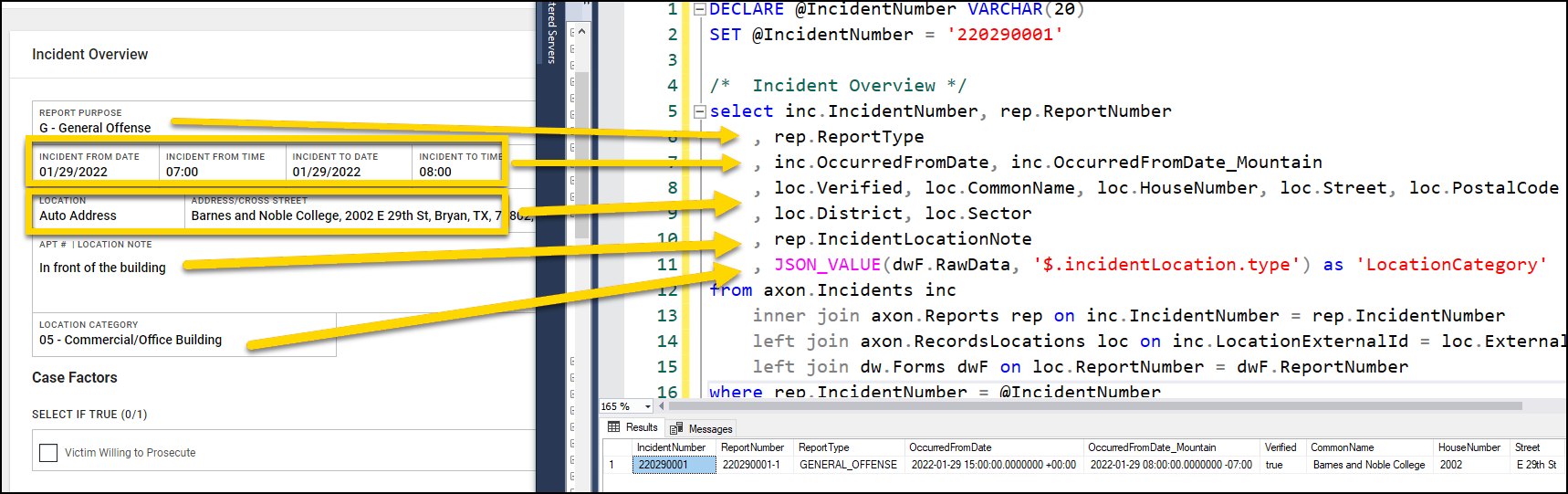

The image shows a comparison between an incident report user interface and an SQL query that retrieves the corresponding data from a database. The left side displays an incident overview with details such as the report purpose, incident date and time, location, address, and location category. Yellow highlights and arrows point to the SQL query on the right, showing how fields like incident date, time, location, and category are mapped in the database. The query selects data from multiple tables using joins, and JSON_VALUE is used to extract location category information. The bottom section shows the query results, matching the incident details from the UI.

SQL Select Statement
Copy
/* Incident Overview */
SELECT inc.IncidentNumber,
    rep.ReportNumber,
    rep.ReportType,
    inc.OccurredFromDate,
    inc.OccurredFromDate_Mountain,
    loc.Verified,
    loc.CommonName,
    loc.HouseNumber,
    loc.Street,
    loc.PostalCode,
    loc.District,
    loc.Sector,
    rep.IncidentLocationNote,
    JSON_VALUE(dwF.RawData, '$.incidentLocation.type') AS 'LocationCategory'
FROM axon.Incidents inc
INNER JOIN axon.Reports rep ON inc.IncidentNumber = rep.IncidentNumber
LEFT JOIN axon.RecordsLocations loc ON inc.LocationExternalId = loc.ExternalId
AND inc.IncidentNumber = loc.IncidentNumber
LEFT JOIN dw.Forms dwF ON loc.ReportNumber = dwF.ReportNumber
WHERE rep.IncidentNumber = @IncidentNumber

Case factors

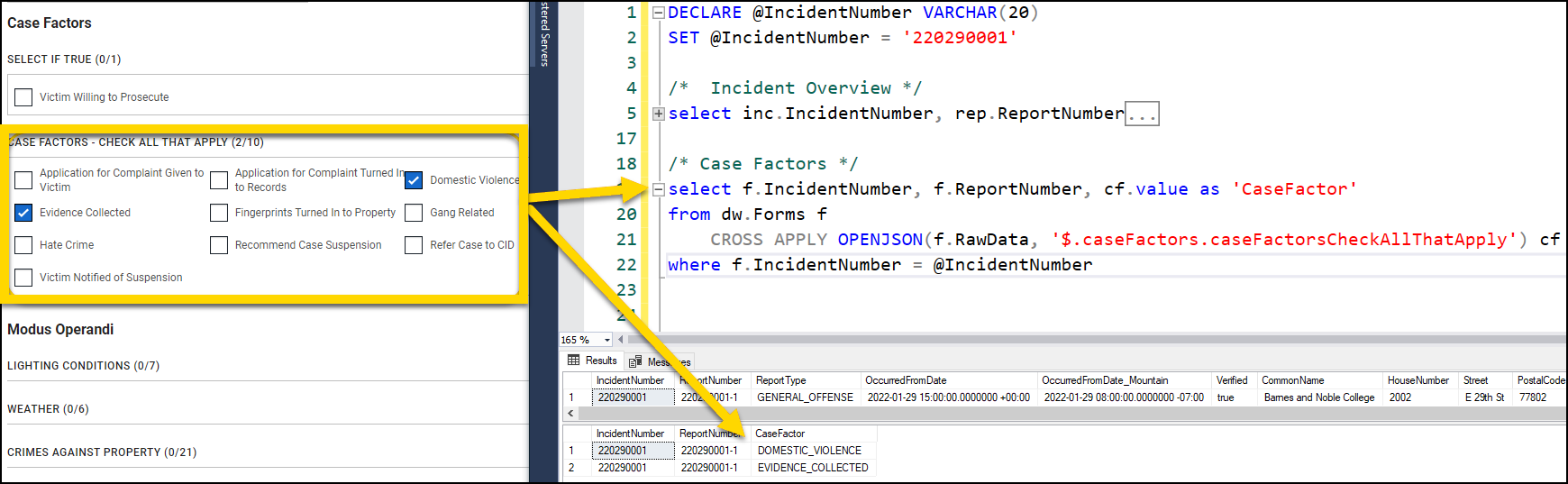

The image shows a comparison between an incident report user interface and an SQL query retrieving case factor data. The left side highlights the Case Factors section, where checkboxes indicate selected case factors such as Domestic Violence and Evidence Collected. Yellow arrows point to the SQL query on the right, which extracts case factors using the OPENJSON function to parse JSON data stored in the database. The bottom section displays query results, showing that the selected case factors match the extracted database values.

SQL Select Statement
Copy
/* Case Factors */
SELECT f.IncidentNumber,
    f.ReportNumber,
    cf.value AS 'CaseFactor'
FROM dw.Forms f CROSS APPLY OPENJSON(f.RawData, '$.caseFactors.caseFactors') cf
WHERE f.IncidentNumber = @IncidentNumber

Offense

Assault

The image shows a comparison between an incident report user interface and an SQL query retrieving offense-related data. The top section highlights offense details such as the charge description, severity, NIBRS UCR code, state code, and additional factors like offender suspicion, gang activity, weapon involvement, and bias motivation. Yellow arrows connect these UI elements to corresponding fields in the SQL query, which selects and joins multiple tables to extract the relevant data. The bottom section displays the query results, showing how the extracted database values match the details from the UI.

Theft

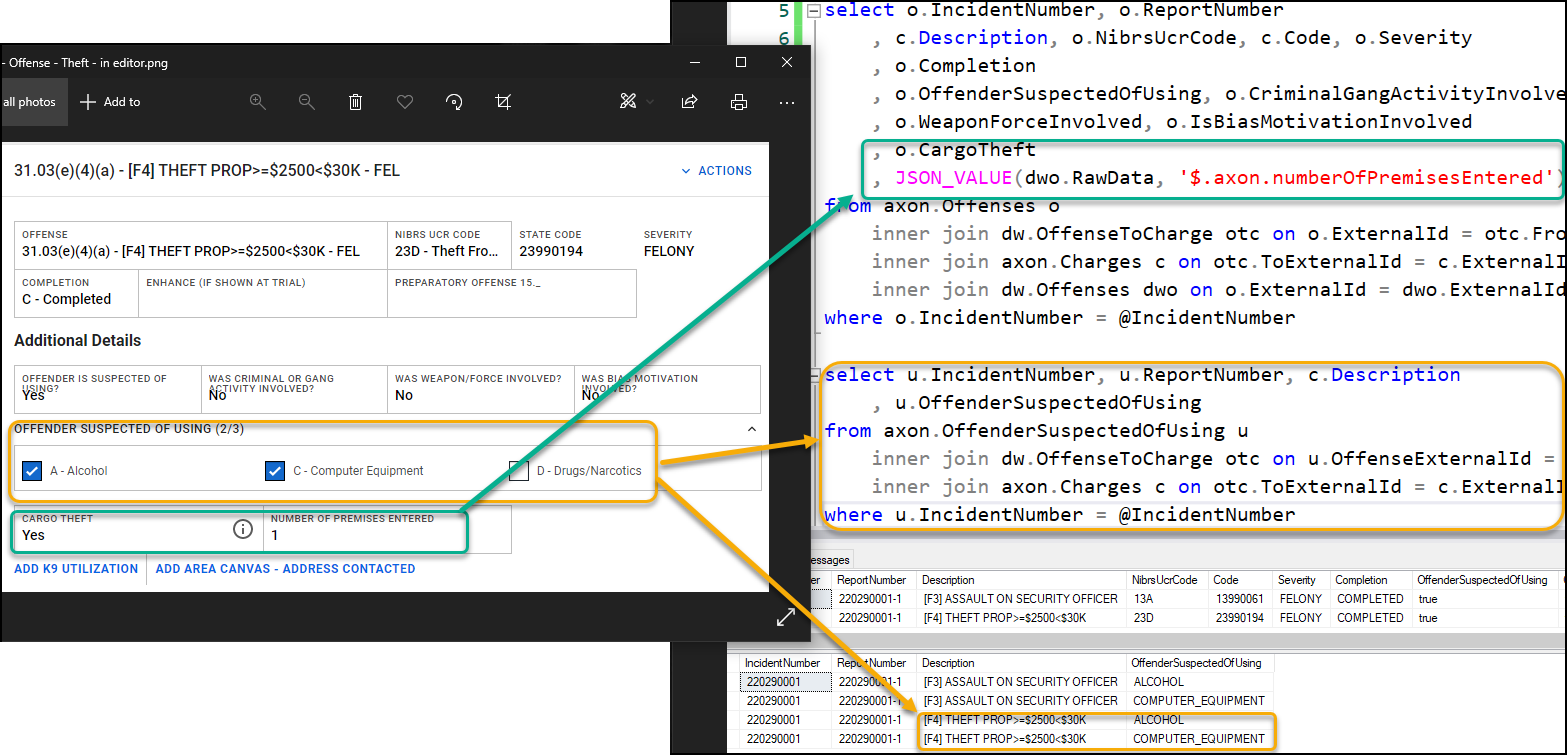

The image shows a comparison between an incident report user interface and an SQL query retrieving offense-related data. The left side highlights details of an offense, including offender suspicion of using substances, cargo theft, and the number of premises entered. Yellow and green arrows connect these UI elements to the corresponding SQL queries on the right, which extract data from multiple tables using joins and JSON_VALUE functions. The bottom section displays the query results, confirming that the extracted database values match the UI details for the incident.

SQL Select Statement
Copy
/* Offenses */
SELECT o.IncidentNumber,
    o.ReportNumber,
    c.Description,
    o.NibrsUcrCode,
    c.Code,
    o.Severity,
    o.NibrsUcrCode,
    c.Ucr,
    o.Completion,
    o.OffenderSuspectedOfUsing,
    o.CriminalGangActivityInvolved,
    o.WeaponForceInvolved,
    o.IsBiasMotivationInvolved,
    o.CargoTheft /* Suspected of Using */
SELECT u.IncidentNumber,
    u.ReportNumber,
        c.Description,
    u.OffenderSuspectedOfUsing
FROM axon.OffenderSuspectedOfUsing u
INNER JOIN dw.OffenseToCharge otc ON u.OffenseExternalId = otc.FromExternalId
AND otc.ReportNumber = u.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNumber
WHERE u.IncidentNumber = @IncidentNumber

Person

General description

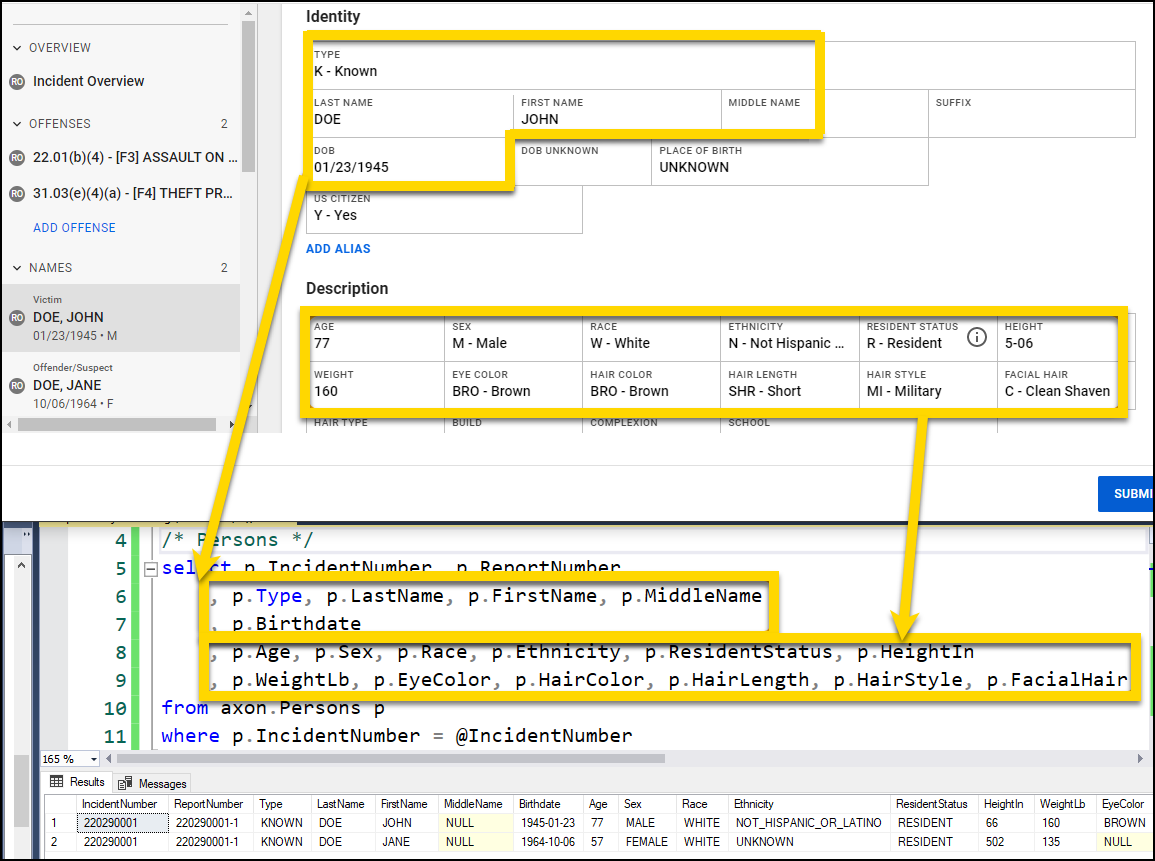

The image shows a comparison between an identity details user interface and an SQL query retrieving person-related data. The top section highlights a person's identity information, including name, date of birth, citizenship, and place of birth, as well as a description section with attributes such as age, sex, race, ethnicity, height, weight, eye color, hair color, and resident status. Yellow arrows connect these UI elements to the corresponding SQL query on the right, which selects and extracts the relevant fields from the database. The bottom section displays query results, confirming that the extracted database values match the UI details for the person.

SQL Select Statement
Copy
/* Persons */
SELECT p.IncidentNumber,
    p.ReportNumber,
    p.Type,
    p.LastName,
    p.FirstName,
    p.MiddleName,
    p.Birthdate,
    p.Age,
    p.Sex,
    p.Race,
    p.Ethnicity,
    p.ResidentStatus,
    p.HeightIn,
    p.WeightLb,
    p.EyeColor,
    p.HairColor,
    p.HairLength,
    p.HairStyle,
    p.FacialHair
FROM axon.Persons p
WHERE p.IncidentNumber = @IncidentNumber

Involvement

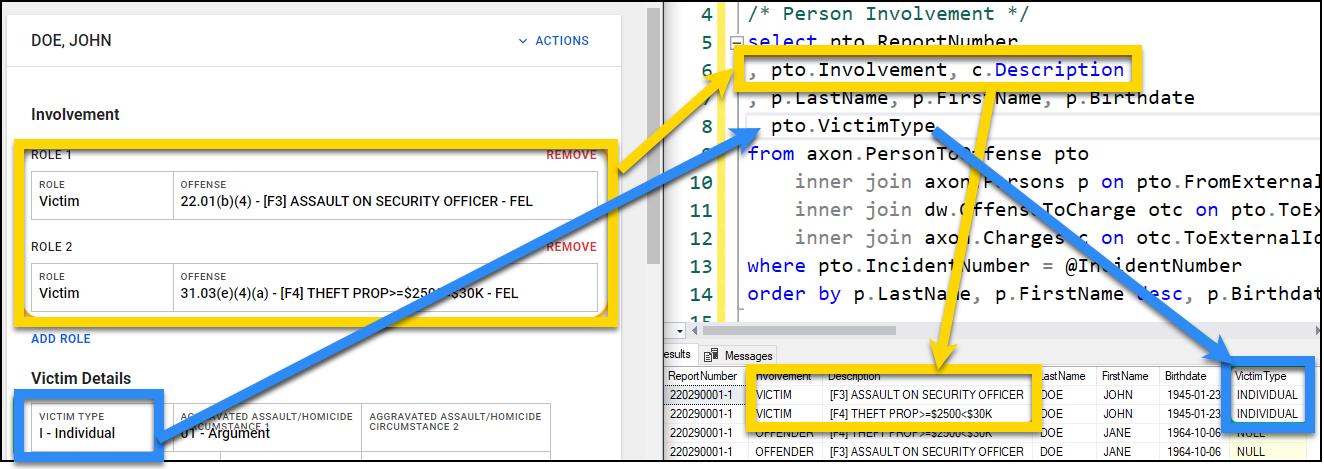

The image shows a comparison between an involvement details user interface and an SQL query retrieving person involvement data. The left section highlights a person's roles in multiple offenses, showing their involvement as a victim in different incidents. The Victim Type field is also displayed, indicating the person is classified as an individual. Yellow and blue arrows connect these UI elements to corresponding fields in the SQL query, which selects involvement type, offense description, and victim type from the database. The bottom section displays query results, confirming that the extracted database values match the UI details for the person's involvement.

SQL Select Statement
Copy
/* Person Involvement */
SELECT pto.ReportNumber,
    pto.Involvement,
    c.Description,
    p.LastName,
    p.FirstName,
    p.Birthdate,
    pto.VictimType
FROM axon.PersonToOffense pto
INNER JOIN axon.Persons p ON pto.FromExternalId = p.ExternalId
AND pto.ReportNumber = p.Report Number
INNER JOIN dw.OffenseToCharge otc ON pto.ToExternalId = otc.FromExternalId
AND pto.ReportNumber = otc.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNumber
WHERE pto.IncidentNumber = @IncidentNumber
ORDER BY p.LastName,
    p.FirstName DESC,
    p.Birthdate

Identifying documents

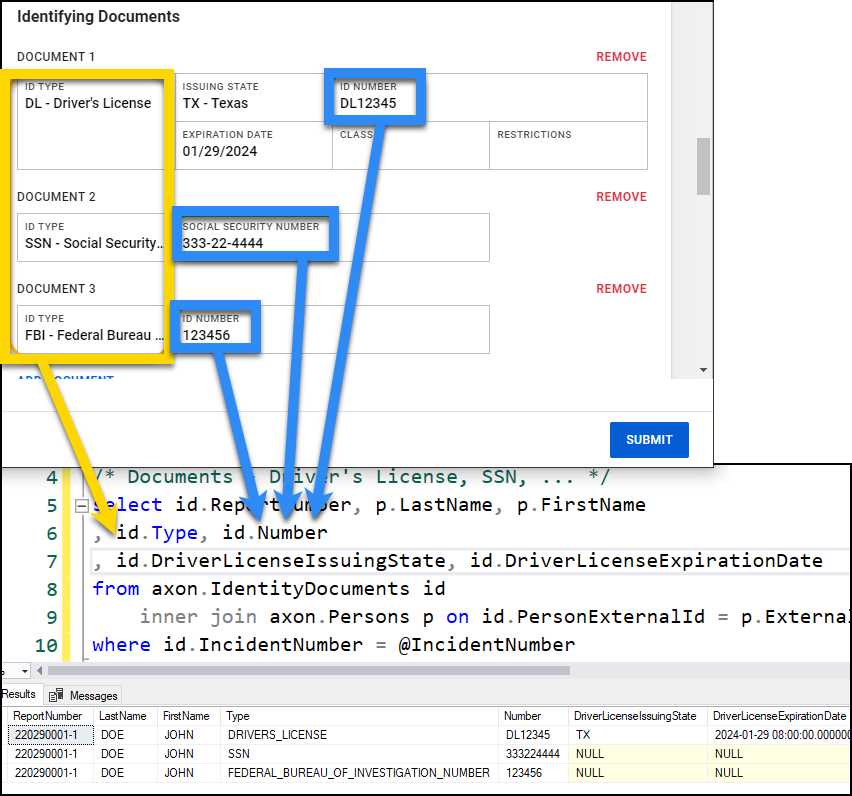

The image shows a comparison between an identifying documents user interface and an SQL query retrieving identification records. The left section highlights three documents: a driver's license, a social security number, and an FBI identification number, each with corresponding details such as issuing state, expiration date, and ID number. Yellow and blue arrows connect these UI elements to the SQL query on the right, which extracts ID type, number, issuing state, and expiration date from the database. The bottom section displays query results, confirming that the extracted database values match the UI details for the person's identifying documents.

SQL Select Statement
Copy
/* Documents - Driver's License, SSN, ... */
SELECT id.ReportNumber,
    p.LastName,
    p.FirstName,
    id.Type,
    id.Number,
    id.DriverLicenseIssuingState,
    id.DriverLicenseExpirationDate
FROM axon.IdentityDocuments id
INNER JOIN axon.Persons p ON id.PersonExternalId = p.ExternalId
AND id.ReportNumber = p.Report Number
WHERE id.IncidentNumber = @IncidentNumber

Markings

The image shows a comparison between the Scars, Marks, Tattoos section in Report Writer and an SQL query retrieving marking data. The left section highlights two markings: dimples on the chin and a tattoo on the left arm with a description. Yellow arrows connect these Report Writer elements to the SQL query on the right, which extracts marking type, location, and description from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Scars/Marks/Tattoos */
SELECT smt.ReportNumber,
    smt.ParentEntityType,
    smt.Type,
    smt.Location,
    smt.Description,
    p.LastName,
    p.FirstName
FROM axon.Markings smt
INNER JOIN axon.Persons p ON smt.ParentExternalId = p.ExternalId
AND p.ReportNumber = smt.ReportNumber
WHERE smt.IncidentNumber = @IncidentNumber

Phone numbers

The image shows a comparison between the contact information section in Report Writer and an SQL query retrieving phone numbers and email addresses. The left section highlights two phone numbers, one classified as a home number and another as a mobile number, along with an email address. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects home number, mobile number, and email addresses from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Person Contact Info - Phone Numbers */
SELECT c.ReportNumber,
    c.LastName,
    c.FirstName,
    c.HomeNumber,
    c.MobileNumber,
    c.Emails
FROM axon.ContactInformation c
WHERE c.IncidentNumber = @IncidentNumber

Person-to-person relationships

The image shows a comparison between the Relationships section in Report Writer and an SQL query retrieving person-to-person relationship data. The left section highlights the names of two individuals, with one designated as a victim and the other as an offender or suspect. The Relationships section shows that John Doe is listed as a parent. Yellow arrows connect these Report Writer elements to the SQL query on the right, which extracts first names and relationship types from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Person to Person Relationships */
SELECT ptp.ReportNumber,
    f.FirstName,
    ptp.Type,
    t.FirstName
FROM axon.PersonToPerson ptp
INNER JOIN axon.Persons f ON ptp.FromExternalId = f.ExternalId
AND f.ReportNumber = ptp.Report Number
INNER JOIN axon.Persons t ON ptp.ToExternalId = t.ExternalId
AND t.ReportNumber = ptp.ReportNumber
WHERE ptp.IncidentNumber = @IncidentNumber

Arrest

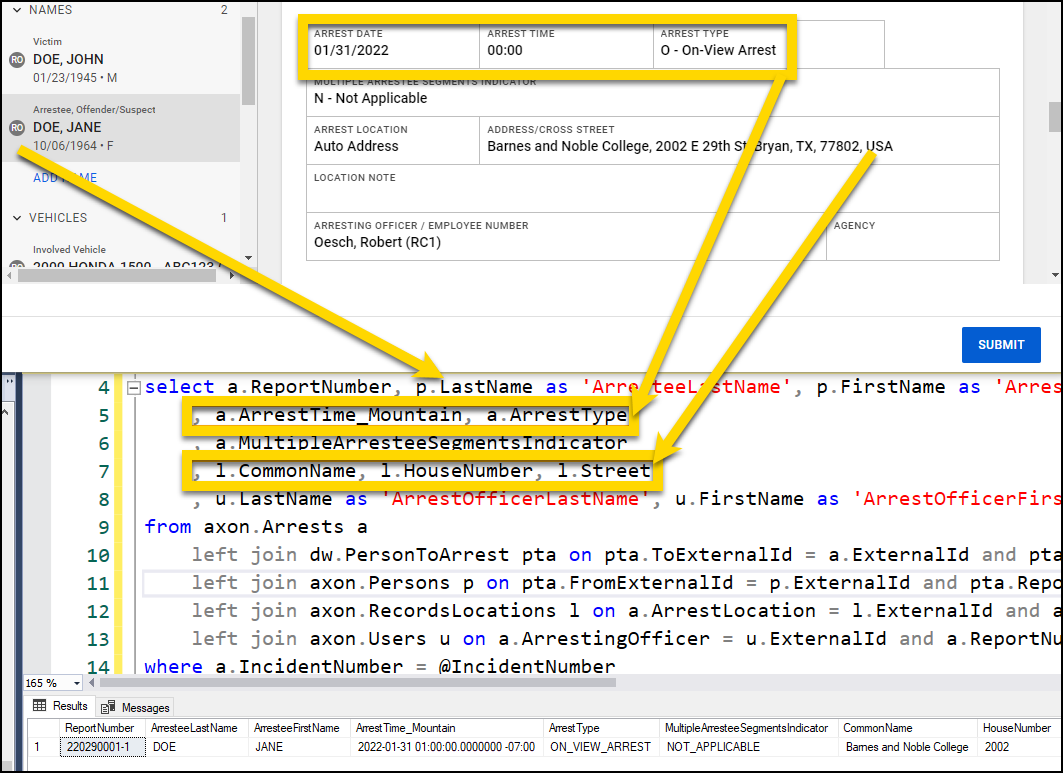

The image shows a comparison between the Arrest Details section in Report Writer and an SQL query retrieving arrest-related data. The left section highlights key arrest information, including the arrest date, time, type, location, and arresting officer. Yellow arrows connect these Report Writer elements to the SQL query on the right, which extracts fields such as arrest time, arrest type, multiple arrestee segments indicator, and location details from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Person - Arrest */
SELECT a.ReportNumber,
    p.LastName AS 'ArresteeLastName',
    p.FirstName AS 'ArresteeFirstName',
    a.ArrestTime_Mountain,
    a.ArrestType,
    a.MultipleArresteeSegmentsIndicator,
    l.CommonName,
    l.HouseNumber,
    l.Street,
    u.LastName AS 'ArrestOfficerLastName',
    u.FirstName AS 'ArrestOfficerFirstName',
    u.BadgeNumber AS 'ArrestOfficerBadge'
FROM axon.Arrests a
LEFT JOIN dw.PersonToArrest pta ON pta.ToExternalId = a.ExternalId
AND pta.ReportNumber = a.ReportNumber
LEFT JOIN axon.Persons p ON pta.FromExternalId = p.ExternalId
AND pta.ReportNumber = p.ReportNumber
LEFT JOIN axon.RecordsLocations l ON a.ArrestLocation = l.ExternalId
AND a.ReportNumber = l.ReportNumber
LEFT JOIN axon.Users u ON a.ArrestingOfficer = u.ExternalId
AND a.ReportNumber = u.ReportNumber
WHERE a.IncidentNumber = @IncidentNumber

Arrest charges

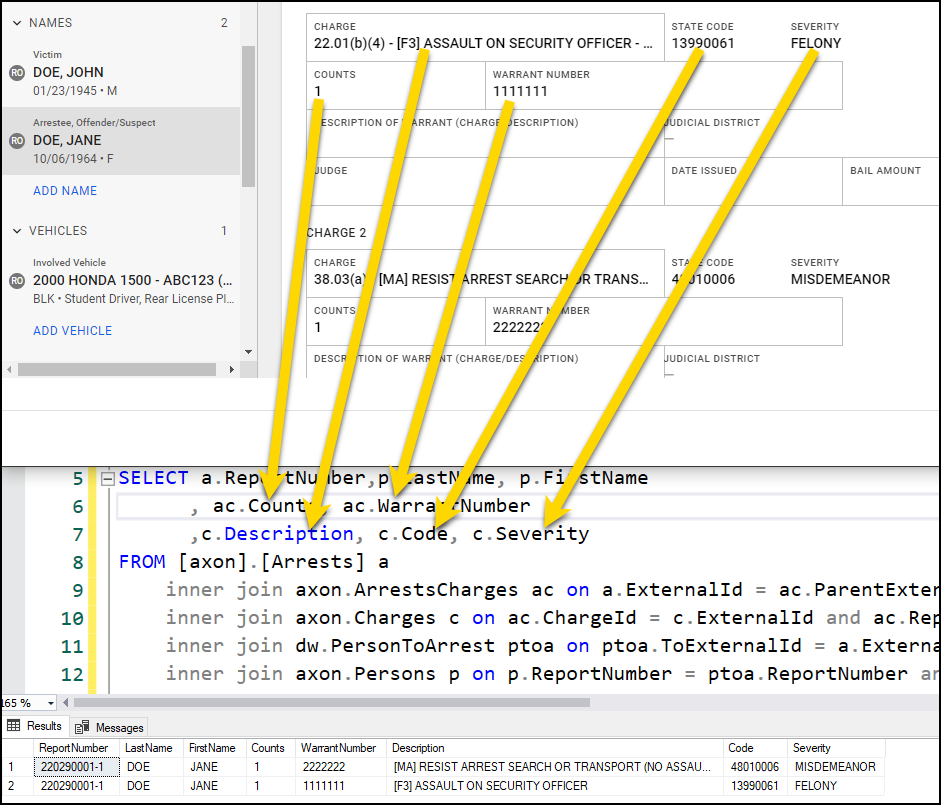

The image shows a comparison between the Charges section in Report Writer and an SQL query retrieving charge-related data. The left section highlights two charges with details such as charge description, state code, severity, warrant number, and count. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects charge description, code, severity, count, and warrant number from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Person - Arrest Charge */
SELECT a.ReportNumber,
    p.LastName,
    p.FirstName,
    ac.Counts,
    ac.WarrantNumber,
    c.Description,
    c.Code,
    c.Severity
FROM [axon].[Arrests] a
INNER JOIN axon.ArrestsCharges ac ON a.ExternalId = ac.ParentExternalId
AND a.ReportNumber = a c.ReportNumber
INNER JOIN axon.Charges c ON ac.ChargeId = c.ExternalId
AND ac.ReportNumber = c.ReportNumber
INNER JOIN dw.PersonToArrest ptoa ON ptoa.ToExternalId = a.ExternalId
AND ptoa.ReportNumber = a.ReportNumber
INNER JOIN axon.Persons p ON p.ReportNumber = ptoa.ReportNumber
AND ptoa.FromExternalId = p.ExternalId
WHERE a.IncidentNumber = @IncidentNumber

Vehicle

Details

The image shows a comparison between the Vehicle Details section in Report Writer and an SQL query retrieving vehicle-related data. The left section highlights details such as vehicle type, year, make, model, style, color, license plate number, state, VIN, and value. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects vehicle type, year, make, model, style, color, VIN, license plate number, and monetary value from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Vehicle */
SELECT v.ReportNumber,
    v.Type,
    v.Year,
    v.Make,
    v.Model,
    v.Style,
    v.Color,
    v.LicensePlateNumber,
    v.LicensePlateState,
    v.Vin,
    v.MonetaryValueCents
FROM axon.Vehicles v
WHERE v.IncidentNumber = @IncidentNumber

Role

The image shows a comparison between the Vehicle Information section in Report Writer and an SQL query retrieving vehicle-related data. The left section highlights details such as the vehicle's role as recovered, its involvement in an offense, and its NIBRS vehicle status marked as do not report. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects vehicle year, make, involvement type, offense description, and vehicle status from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Vehicle Role */
SELECT v.ReportNumber,
    v.Year,
    v.Make,
    vto.Involvement,
    c.Description,
    vto.VehicleStatus
FROM axon.Vehicles v
LEFT JOIN axon.VehicleToOffense vto ON vto.FromExternalId = v.ExternalId
AND vto.ReportNumber = v.ReportNumber
INNER JOIN axon.Offenses o ON vto.ToExternalId = o.ExternalId
AND vto.ReportNumber = o.ReportNumber
INNER JOIN dw.OffenseToCharge otc ON otc.FromExternalId = o.ExternalId
AND otc.ReportNumber = o.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNumber
WHERE v.IncidentNumber = @IncidentNumber

Markings

The image shows a comparison between the Vehicle Markings section in Report Writer and an SQL query retrieving vehicle marking data. The left section highlights two markings: a decal labeled Student Driver and a damage marking indicating that the rear license plate is held on with zip ties. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects marking type, marking description, vehicle year, make, and license plate number from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statementc

Copy
/* Vehicle Markings */
SELECT m.ReportNumber,
    m.ParentEntityType,
    m.Type,
    m.Description,
    v.Year,
    v.Make,
    v.LicensePlateNumber
FROM axon.Markings m
INNER JOIN axon.Vehicles v ON m.ParentExternalId = v.ExternalId
AND v.ReportNumber = m.ReportNumber
WHERE m.IncidentNumber = @IncidentNumber

Property

The image shows a comparison between the Property Description section in Report Writer and an SQL query retrieving property-related data. The left section highlights key details, including property type, monetary value, quantity, serial number, description, color, brand, and model. Yellow arrows connect these Report Writer elements to the SQL query on the right, which selects type, monetary value, recovered value, measurement, quantity estimate, serial number, description, color, brand, and model from the database. The bottom section displays query results, confirming that the extracted database values match the details in Report Writer.

SQL Select Statement
Copy
/* Property */
SELECT p.Type,
    p.MonetaryValueCents,
    p.RecoveredValueCents

SQL select statements: Full list

Copy
DECLARE @IncidentNumber VARCHAR(20)
SET @IncidentNumber = '22033001' /* Incident Overview */
SELECT inc.IncidentNumber,
    rep.ReportNumber,
    rep.ReportType,
    inc.OccurredFromDate,
    inc.OccurredFromDate_Mountain,
    loc.Verified,
    loc.CommonName,
    loc.HouseNumber,
    loc.Street,
    loc.PostalCode,
    loc.District,
    loc.Sector,
    rep.IncidentLocationNote,
    JSON_VALUE(dwF.RawData, '$.incidentLocation.type') AS 'LocationCategory'
FROM axon.Incidents inc
INNER JOIN axon.Reports rep ON inc.IncidentNumber = rep.IncidentNumber
LEFT JOIN axon.RecordsLocations loc ON inc.LocationExternalId = loc.ExternalId
AND inc.Inciden tNumber = loc.IncidentNumber
LEFT JOIN dw.Forms dwF ON loc.ReportNumber = dwF.ReportNumber
WHERE rep.IncidentNumber = @IncidentNumber

/* Case Factors */
SELECT f.IncidentNumber,
    f.ReportNumber,
    cf.value AS 'CaseFactor'
FROM dw.Forms f CROSS APPLY OPENJSON(f.RawData, '$.caseFactors.caseFactors') cf
WHERE f.IncidentNumber = @IncidentNumber

/* Offenses */
SELECT o.IncidentNumber,
    o.ReportNumber,
    c.Description,
    o.NibrsUcrCode,
    c.Code,
    o.Severity,
    o.NibrsUcrCode,
    c.Ucr,
    o.Completion,
    o.OffenderSuspectedOfUsing,
    o.CriminalGangActivityInvolved,
    o.WeaponForceInvolved,
    o.IsBiasMotivationInvolved,
    o.CargoTheft,
JSON_VALUE(dwo.RawData, '$.axon.numberOfPremisesEntered') AS 'NumberOfPremisesEntered'
FROM axon.Offenses o
INNER JOIN dw.OffenseToCharge otc ON o.ExternalId = otc.FromExternalId
AND otc.ReportNumber = o.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNu mber
INNER JOIN dw.Offenses dwo ON o.ExternalId = dwo.ExternalId
AND o.ReportNumber = dwo.ReportNum ber WHERE o.IncidentNumber = @IncidentNumber

/* Suspected of Using */
SELECT u.IncidentNumber,
    u.ReportNumber,
    c.Description,
    u.OffenderSuspectedOfUsing
FROM axon.OffenderSuspectedOfUsing u
INNER JOIN dw.OffenseToCharge otc ON u.OffenseExternalId = otc.FromExternalId
AND otc.ReportNu mber = u.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNu mber WHERE u.IncidentNumber = @IncidentNumber
/* Persons */
SELECT p.IncidentNumber,
    p.ReportNumber,
    p.Type,
    p.LastName,
    p.FirstName,
    p.MiddleName,
    p.Birthdate,
    p.Age,
    p.Sex,
    p.Race,
    p.Ethnicity,
    p.ResidentStatus,
    p.HeightIn,
    p.WeightLb,
    p.EyeColor,
    p.HairColor,
    p.HairLength,
    p.HairStyle,
    p.FacialHair
FROM axon.Persons p WHERE p.IncidentNumber = @IncidentNumber

/* Person Involvement */
SELECT pto.ReportNumber,
    pto.Involvement,
    c.Description,
    p.LastName,
    p.FirstName,
    p.Birthdate,
    pto.VictimType
FROM axon.PersonToOffense pto
INNER JOIN axon.Persons p ON pto.FromExternalId = p.ExternalId
AND pto.ReportNumber = p.Report Number
INNER JOIN dw.OffenseToCharge otc ON pto.ToExternalId = otc.FromExternalId
AND pto.ReportNumbe r = otc.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNumber WHERE pto.IncidentNumber = @IncidentNumber
ORDER BY p.LastName,
    p.FirstName DESC,
    p.Birthdate /* Documents - Driver's License, SSN, ... */
SELECT id.ReportNumber,
    p.LastName,
    p.FirstName,
    id.Type,
    id.Number,
    id.DriverLicenseIssuingState,
    id.DriverLicenseExpirationDate
FROM axon.IdentityDocuments id
INNER JOIN axon.Persons p ON id.PersonExternalId = p.ExternalId
AND id.ReportNumber = p.Report Number
WHERE id.IncidentNumber = @IncidentNumber

/* Scars/Marks/Tattoos */
SELECT smt.ReportNumber,
    smt.ParentEntityType,
    smt.Type,
    smt.Location,
    smt.Description,
    p.LastName,
    p.FirstName
FROM axon.Markings smt
INNER JOIN axon.Persons p ON smt.ParentExternalId = p.ExternalId
AND p.ReportNumber = smt.ReportNumber WHERE smt.IncidentNumber = @IncidentNumber

/* Person Contact Info - Phone Numbers */
SELECT c.ReportNumber,
    c.LastName,
    c.FirstName,
    c.HomeNumber,
    c.MobileNumber,
    c.Emails
FROM axon.ContactInformation c WHERE c.IncidentNumber = @IncidentNumber

/* Person to Person Relationships */
SELECT ptp.ReportNumber,
    f.FirstName,
    ptp.Type,
    t.FirstName
FROM axon.PersonToPerson ptp
INNER JOIN axon.Persons f ON ptp.FromExternalId = f.ExternalId
AND f.ReportNumber = ptp.Report Number
INNER JOIN axon.Persons t ON ptp.ToExternalId = t.ExternalId
AND t.ReportNumber = ptp.ReportNumber WHERE ptp.IncidentNumber = @IncidentNumber

/* Person - Arrest */
SELECT a.ReportNumber,
    p.LastName AS 'ArresteeLastName',
    p.FirstName AS 'ArresteeFirstName',
    a.ArrestTime_Mountain,
    a.ArrestType,
    a.MultipleArresteeSegmentsIndicator,
    l.CommonName,
    l.HouseNumber,
    l.Street,
    u.LastName AS 'ArrestOfficerLastName',
    u.FirstName AS 'ArrestOfficerFirstName',
    u.BadgeNumber AS 'ArrestOfficerBadge'
FROM axon.Arrests a
LEFT JOIN dw.PersonToArrest pta ON pta.ToExternalId = a.ExternalId
AND pta.ReportNumber = a.ReportNumber
LEFT JOIN axon.Persons p ON pta.FromExternalId = p.ExternalId
AND pta.ReportNumber = p.ReportNumber
LEFT JOIN axon.RecordsLocations l ON a.ArrestLocation = l.ExternalId
AND a.ReportNumber = l.ReportNumber
LEFT JOIN axon.Users u ON a.ArrestingOfficer = u.ExternalId
AND a.ReportNumber = u.ReportNumber WHERE a.IncidentNumber = @IncidentNumber

/* Person - Arrest Charge */
SELECT a.ReportNumber,
    p.LastName,
    p.FirstName,
    ac.Counts,
    ac.WarrantNumber,
    c.Description,
    c.Code,
    c.Severity
FROM [axon].[Arrests] a
INNER JOIN axon.ArrestsCharges ac ON a.ExternalId = ac.ParentExternalId
AND a.ReportNumber = a c.ReportNumber
INNER JOIN axon.Charges c ON ac.ChargeId = c.ExternalId
AND ac.ReportNumber = c.ReportNumber
INNER JOIN dw.PersonToArrest ptoa ON ptoa.ToExternalId = a.ExternalId
AND ptoa.ReportNumber = a.ReportNumber
INNER JOIN axon.Persons p ON p.ReportNumber = ptoa.ReportNumber
AND ptoa.FromExternalId = p.ExternalId WHERE a.IncidentNumber = @IncidentNumber

/* Vehicle */
    SELECT v.ReportNumber,
    v.Type,
    v.Year,
    v.Make,
    v.Model,
    v.Style,
    v.Color,
    v.LicensePlateNumber,
    v.LicensePlateState,
    v.Vin,
    v.MonetaryValueCents
FROM axon.Vehicles v WHERE v.IncidentNumber = @IncidentNumber

/* Vehicle Role */
SELECT v.ReportNumber,
    v.Year,
    v.Make,
    vto.Involvement,
    c.Description,
    vto.VehicleStatus
FROM axon.Vehicles v
LEFT JOIN axon.VehicleToOffense vto ON vto.FromExternalId = v.ExternalId
AND vto.ReportNumber = v.ReportNumber
INNER JOIN axon.Offenses o ON vto.ToExternalId = o.ExternalId
AND vto.ReportNumber = o.ReportNumber
INNER JOIN dw.OffenseToCharge otc ON otc.FromExternalId = o.ExternalId
AND otc.ReportNumber = o.ReportNumber
INNER JOIN axon.Charges c ON otc.ToExternalId = c.ExternalId
AND otc.ReportNumber = c.ReportNumber WHERE v.IncidentNumber = @IncidentNumber

/* Vehicle Markings */
SELECT m.ReportNumber,
    m.ParentEntityType,
    m.Type,
    m.Description,
    v.Year,
    v.Make,
    v.LicensePlateNumber
FROM axon.Markings m
INNER JOIN axon.Vehicles v ON m.ParentExternalId = v.ExternalId
AND v.ReportNumber = m.ReportNumber WHERE m.IncidentNumber = @IncidentNumber

/* Property */
SELECT p.Type,
    p.MonetaryValueCents,
    p.RecoveredValueCents
