What's in the box (headset)
Starting April 14, 2026, Axon VR training will require mandatory firmware updates for supported VR headsets and controllers. When launching training after this date, you may be prompted to complete required updates before training can continue. Make sure your devices are connected to Wi-Fi to complete the update process. For more information how to update firmware, see Update firmware for VR Controllers and the FAQ How do I check or update the headset firmware?.
The following components are included with the VR system:
- Headset
- Headset battery
- Headset battery cover / magnetic padding
- Headset face cushion
- VR Controllers
- Charger / AC adapter
- Cleaning cloth
- Quick Start Guide
If any of these items are missing, contact Axon Customer Support.
VIVE Focus Vision

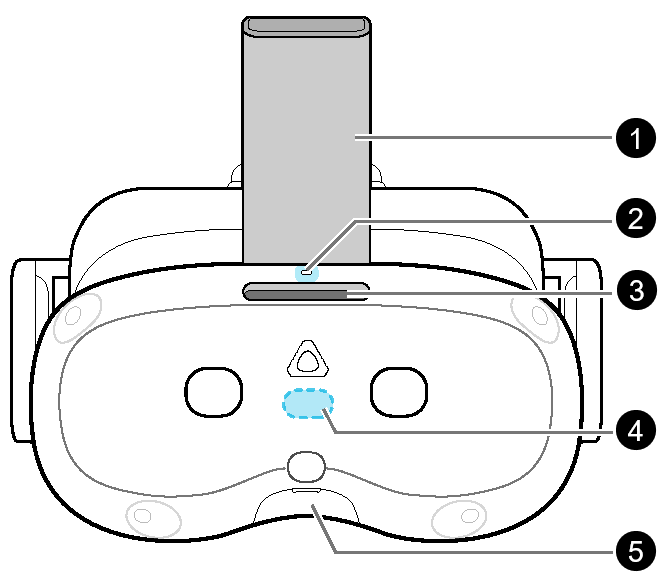

Front view
- Hook and loop fastener
- Headset status LED
- Vent
- IR illuminator
- USB Type-C port (remove cover)
Do not look directly at the IR illuminator while it's flashing, as it may damage your eyes.

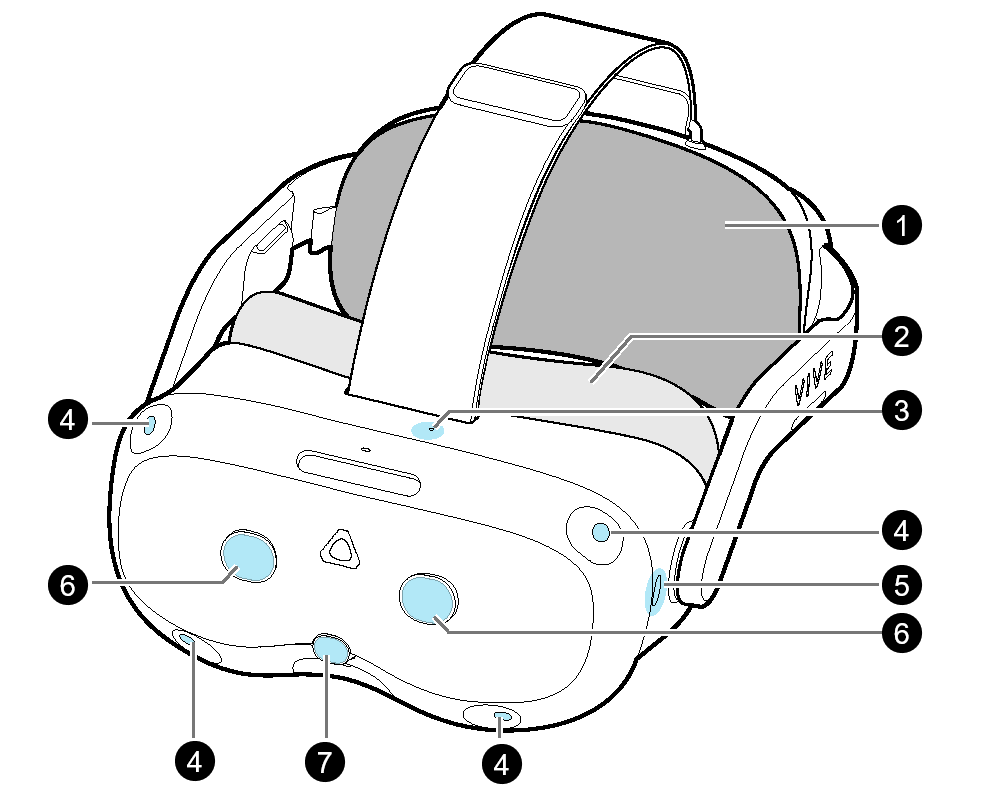

Front and left side views
- Back pad
- Face cushion
- Microphone
- Tracking cameras (x4)
- Headset button
- Passthrough cameras (x2)
- Depth sensor

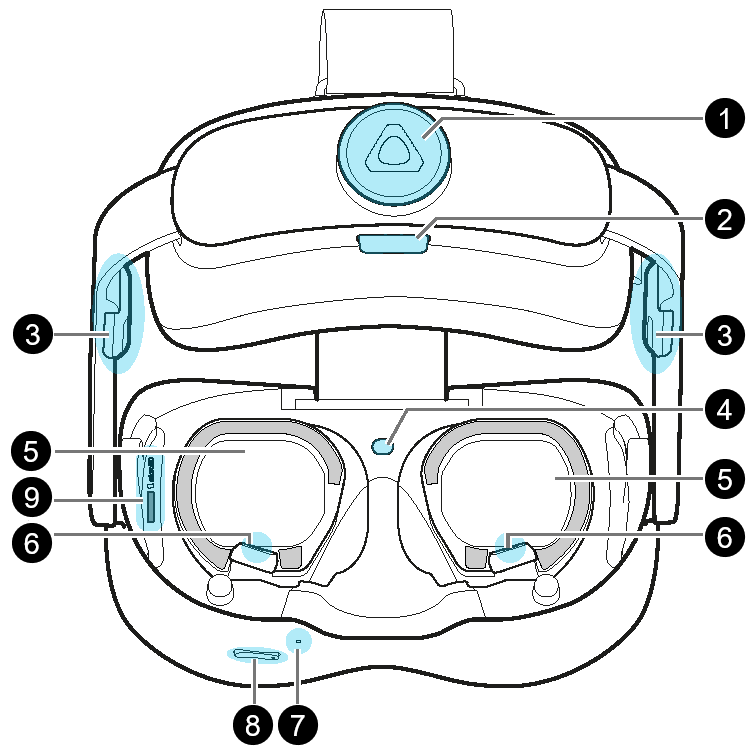

Inside and back views
- Adjustment dial
- Quick release button
- Built-in speaker
- Proximity sensor
- Lens
- Eye tracking cameras
- Microphone
- Volume control
- microSD card slot

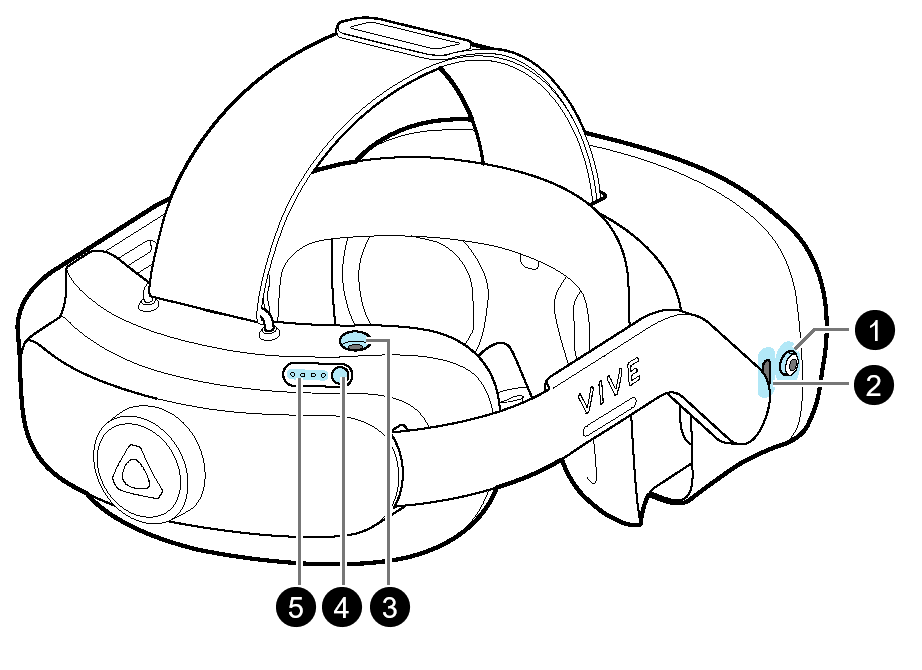

Back and right side views
- 3.5 mm audio jack
- USB Type-C port
- Charging port
- Power button
- Battery LEDs
VIVE Focus 3

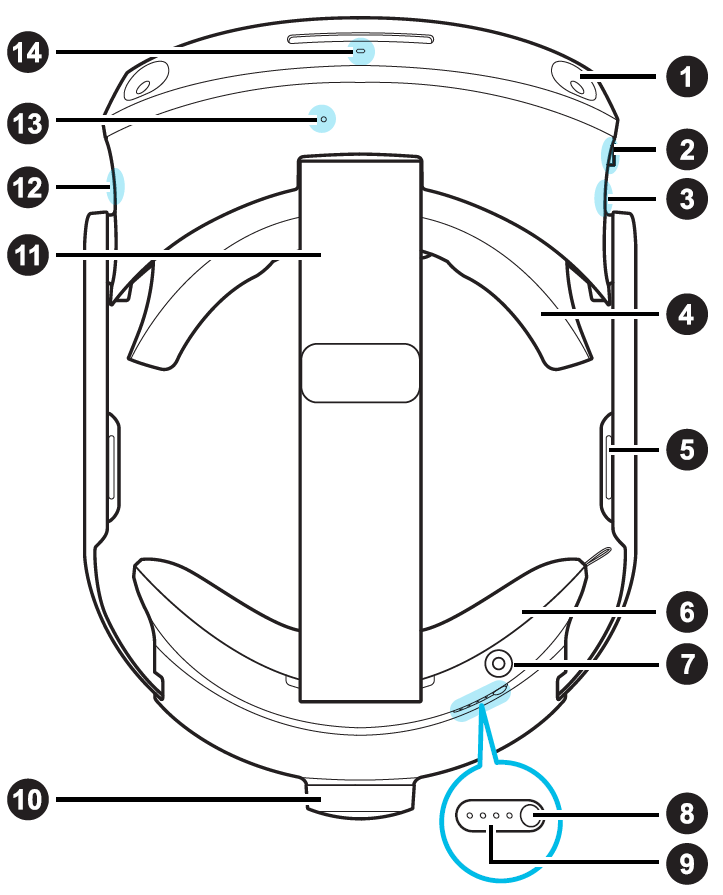

Top view
- Camera
- 3.5 mm audio jack
- USB-C port
- Face shield
- Speaker
- Battery cover (magnetic padding)
- Charging port
- Power button
- Battery LED
- Adjustment dial
- Hook and loop fastener
- Headset button
- Microphone
- LED

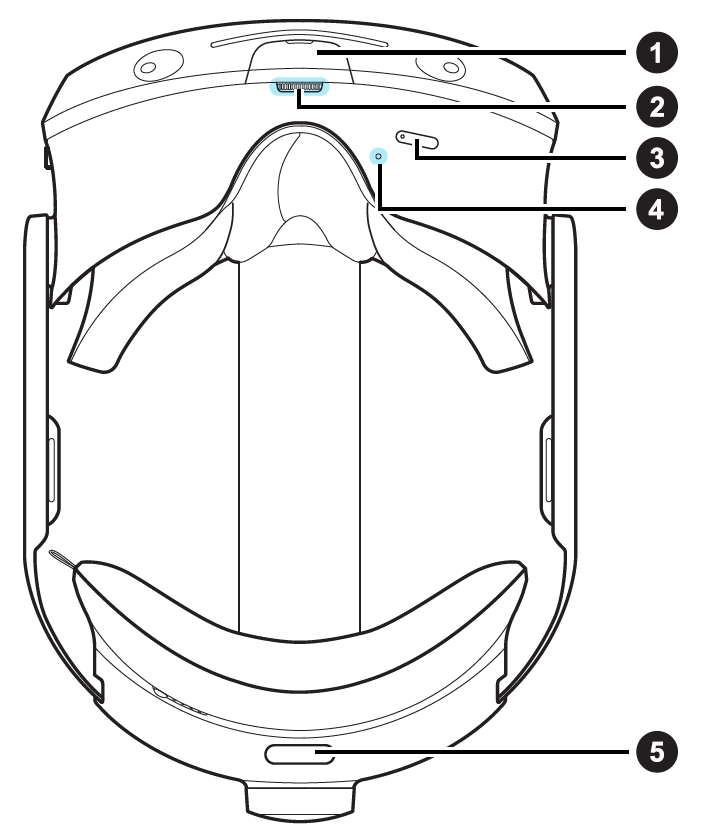

Bottom view
- USB-C port (remove cover)
- Interpupillary distance (IPD) dial
- Volume
- Microphone
- Quick release button
